- MFR #
- SRT6KRMXLT
- Zoro #
- G5114650
- UPC #
- 731304308522
- Country of Origin
- Philippines

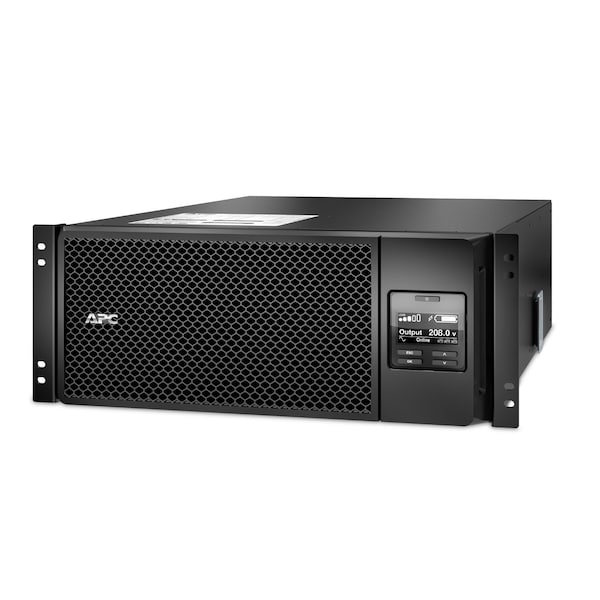

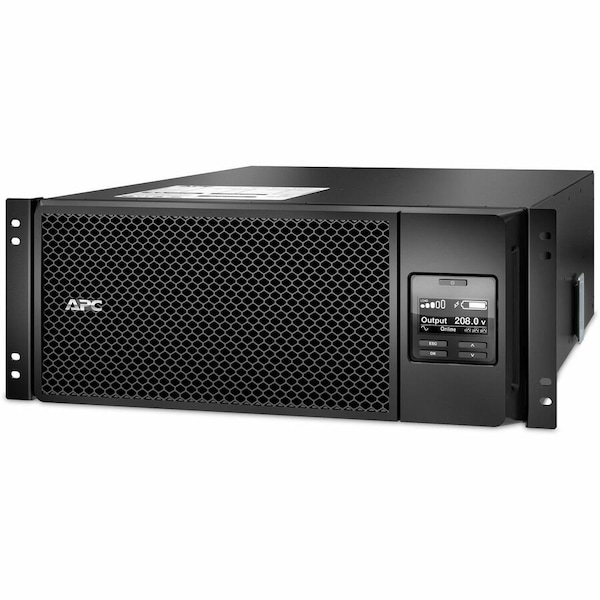

- Item
- UPS System
- VA Rating - UPS Systems
- 6.0 kVA
- UPS Type
- Online/Double Conversion
- Power Rating
- 6000VA
- Mounting
- Rack/Tower
- Wattage
- 6 kW
- Input Voltage
- 208/240V AC
- Output Voltage
- 208/240V AC
- Backup Time (Half/Full Load)
- 8.3 min/2.3 min
- Outlet Type
- Hardwired
- Medical Grade
- No
- Number of Outlets
- 6
- Transfer Time
- 0 msec
- Includes
- Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Temperature Probe
- Automatic Volts Regulation
- No
- NEMA Receptacle Configuration
- (4) L6-20R; (2) L6-30R
- Standards
- ENERGY STAR V2.0 (USA), FCC Part 15 Class A, NOM, RoHS, UL 1778
- Phase
- Single
- Display Type
- No Display
- Hz
- 40 to 70 Hz
- Fax/Modem Line Protection
- No
- Ports
- EPO, RJ45 Serial, Smart Slot, USB
- Input Current
- 33 A
- Capacity - Batteries
- 6000 VA/6000 W
- Battery Type
- Lead Acid
- Housing Color
- Black
- Housing Material
- Steel
- Usb Compatible
- Yes
- Relative Humidity
- 0-95 % non-condensing
- Bypass Type
- Internal Bypass (Automatic and Manual)
- Battery Voltage
- 192V
- Mounting Location
- front
- Alarm
- audible and visible alarms : prioritized by severity
- Ambient Air Temperature For Operation
- 0-40°C
- Kw Rating
- 6000 W
- Additional Specification
- high density
- Form Factor
- Rack-mountable
- Product Certifications
- ENERGY STAR V2.0 (USA) || FCC part 15 class A || NOM || UL 1778
- Typical Battery Recharge Time
- 1.50 Hour
- Surge Energy Rating
- 480 J
- Load Capacity
- 6000 VA/6000 W
- Operating Altitude
- 0...10000 ft
- Waveform Type
- Sine Wave
- Crest Factor
- 0.125694444444444
- Number of Battery & Surge Outlets
- 5
- Storage Altitude
- 0-50000 ft
- Rated Power In Va
- 6000 VA
- Mounting Position
- horizontal
- Battery Life
- 3-5 year(s)
- Package Contents
- Smart-UPS SRT 6000VA RM 208V , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
- Number Of Rack Unit
- 4U
- Efficiency At Full Load
- 100...275 V adjustable (half load)
- Ambient Air Temperature For Storage
- -15-45°C
- Battery Chemistry
- Valve Regulated Lead Acid
- Acoustic Level
- 55 dBA
- Harmonic Distortion
- Less than 2%
- Input Frequency
- 40 - 70 Hz auto-sensing
- Provided Equipment
- CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Temperature Probe || USB cable || Warranty card || Web/SNMP Management Card
- Ip Degree Of Protection
- IP20
- Other Input Voltages
- 240 V
- Online Thermal Dissipation
- 1402 Btu/h
- Free Slots
- 1
- Other Output Voltages
- 240 V
- Plug Configuration
- Hardwired
- Power Rating - Real
- 6 kW
- Input Current - Maximum
- 33 A
- Battery Recharge Time
- 1.5 hr
- External Battery Pack Part Number
- SRT192RMBP
- Replacement Battery Part Number
- APCRBC140, SRT192BP2US, SRT192RMBPUS
- Includes Battery
- Battery Included
- Battery Life - Minimum
- 3 yr
- Output Ports Included
- SNMP, USB
- Frequency
- 40 to 70 Hz
- Surge Suppression Rating
- 480 J
- Automatic Voltage Regulation
- No Automatic Voltage Regulation
- Power Rating - Apparent
- 6 kVA
- Operating Temperature - Minimum
- 32 Degrees F
- Transfer Time - Minimum
- 0 msec
- Run Time - Full Load
- 2.28 min
- Manufacturer Warranty
- 3 yr
- External Battery Compatible
- External Battery Pack Compatible
- Operating Temperature - Maximum
- 104 Degrees F
- Receptacle Configuration
- Hardwired, L6-20R, L6-30R
- Number of Outlets - UPS
- 6
- Run Time - Half Load
- 8.3 min
- Green Certification or Other Recognition
- ENERGY STAR(R) Certified
