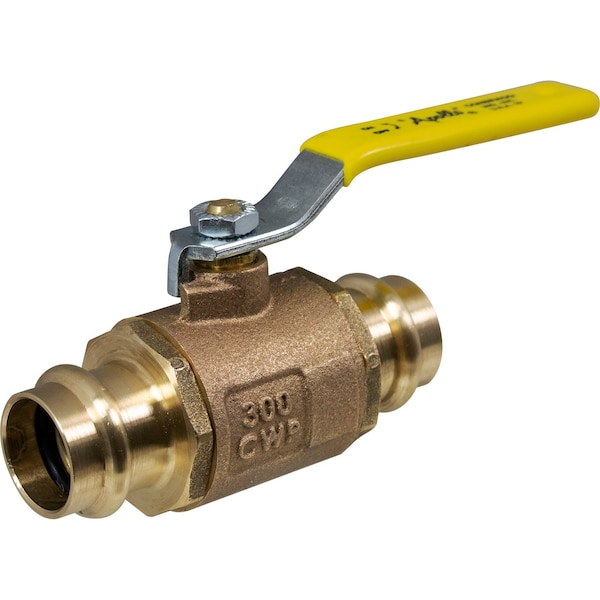

BV, 1"PRESS, FP, BRZ, 2-1/4"EXT
Mfr # 77W10504A
Zoro # G916059496
product price:Â
$
101.99
/ea
Free Shipping & Returns
Key Features
Ball Material
Stainless Steel
Ball Port Style
Full Port
Valve Structure
Two-Piece
Pipe Size
1 in
For Media
Cooling, Heating, Non-Potable Water, Steam
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 77W10504A
- Zoro #
- G916059496
- UPC #
- -
- Country of Origin
- United States
- Ball Material
- Stainless Steel
- Ball Port Style
- Full Port
- Valve Structure
- Two-Piece
- For Media
- Cooling, Heating, Non-Potable Water, Steam
- Connection Type
- Press x Press
- Item
- Ball Valve
- Stem Type
- Blowout Resistant
- Handle Type
- Lever
- Body Material
- Bronze
- Seat Material
- RPTFE
- Max. Pressure
- 300 PSIg
- Seal Material
- EPDM
- Standards
- ARRA Compliant, Build America Buy America (BABA) Act, Buy American Act (BAA), IAPMO/ANSI Z1157, MSS SP-110
- Stem Material
- Brass
- Vacuum Service Rating
- 29 in Hg
- Cleaned and Bagged
- Not Cleaned and Bagged
- Operating Temperature - Minimum
- 0 Degrees F
- Valve Series
- 77W
- Operating Temperature - Maximum
- 250 Degrees F
- Connection Type - Side 2
- Press
- Valve Construction
- Two-Piece
- Connection Type - Side 1
- Press
- Maximum Pressure - Operating
- 300 psig
- Manufacturer Warranty
- 5 yr
Description
Ball Valve, Body Material Bronze, For Media Cooling, Heating, Non-Potable Water, Steam, Valve Construction Two-Piece, Nominal Valve Size 1 in, Maximum Pressure - Operating 300 psig, Vacuum Service Rating 29 in Hg, Ball Material Stainless Steel, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 1 in, Seal Material EPDM, Seat Material RPTFE, Stem Material Brass, Connection Size - Side 2 1 in, Connection Type - Side 1 Press, Stem Type Blowout Resistant
