  11. 1-1/4" FNPT Bronze Ball Valve Inline

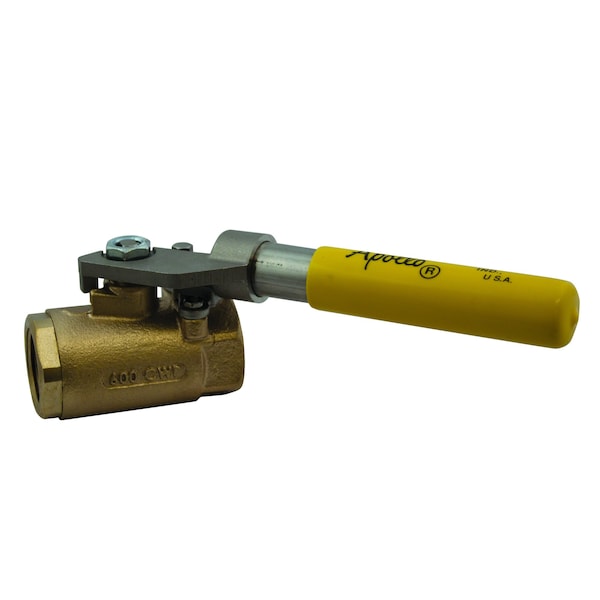

Apollo Valves 1-1/4" FNPT Bronze Ball Valve Inline 7150601 - main

1-1/4" FNPT Bronze Ball Valve Inline

  • Mfr # 7150601

  • Zoro # G1837114

product price: $242.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7150601
Zoro #
G1837114
UPC #
670750680014
Country of Origin
United States

Dimensions

Pipe Size
1 1/4 in
Overall Length
4 in
Connection Size - Side 1
1 1/4 in
Connection Size - Side 2
1 1/4 in
Nominal Valve Size
1 1/4 in
Handle Length
9 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
FNPT x FNPT
Item
Ball Valve
Stem Type
Blowout Proof
Ball Valve Product Group
Manual
Features
Spring Return Handle
Temp. Range
-20 Degrees to 450 Degrees F
Seat Material
PTFE
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA)
Body Material
Bronze
Stem Material
316 Stainless Steel
Handle Type
Spring-Return Lever
Compliance
MSS SP-110
Max. Pressure
600 PSI CWP
Handle Material
304 Stainless Steel with Vinyl Grip
Seal Material
PTFE
Type
Two Piece
Operating Temperature - Maximum
500 Degrees F
Connection Type - Side 1
NPT
Operating Temperature - Minimum
-20 Degrees F
Included Mounting
Actuator Mounting Pad
Color - Valve Body
Bronze
Pipe Schedule Compatibility
Schedule 40
Maximum Pressure - Combustible Gas
Not Rated
Maximum Pressure - Steam
150 PSI WSP
Handle - Locking
Non-Locking
Connection Type - Side 2
NPT
Color - Valve Handle
Yellow
Cleaned and Bagged
Not Cleaned and Bagged
Connection Gender - Side 1
Female
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
0.01
Connection Gender - Side 2
Female
Valve Series
71

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Bronze, Ball Port Style Standard Port, Handle - Locking Non-Locking

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
