  11. 1" Sweat Bronze Ball Valve Inline

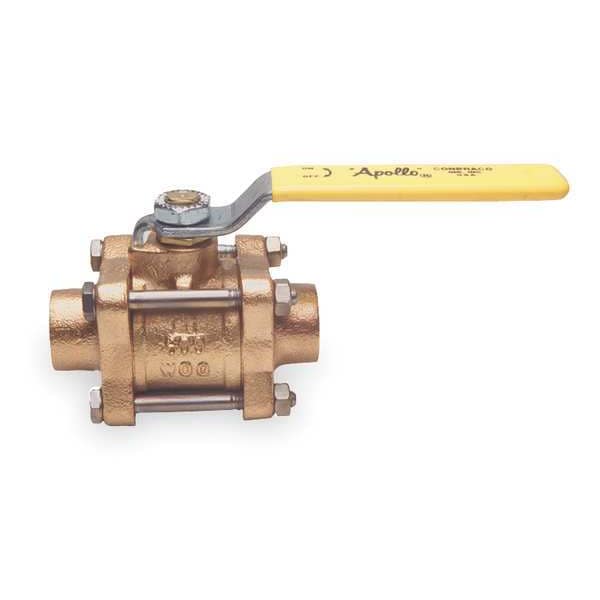

Apollo Valves 1" Sweat Bronze Ball Valve Inline 8220501 - main

1" Sweat Bronze Ball Valve Inline

  • Mfr # 8220501

  • Zoro # G1308291

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8220501
Zoro #
G1308291
UPC #
670750727832
Country of Origin
United States

Dimensions

Pipe Size
1 in
Overall Length
3.87 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Handle Length
5.5 in
Nominal Valve Size
1 in

Details

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Steam
Connection Type
Sweat x Sweat
Item
Ball Valve
Ball Valve Product Group
Manual
Seat Material
RPTFE
Temp. Range
-20 Degrees to 450 Degrees F
Stem Material
Brass
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Stem Type
Blowout Proof
Body Material
Bronze
Compliance
ISO 9001
Max. Pressure
600 PSI CWP
Handle Material
Zinc Plated Steel with Vinyl Grip
Features
In-Line Repairable
Handle Type
Lever
Seal Material
RPTFE
Type
Three Piece
Connection Gender - Side 1
Female
Cleaned and Bagged
Not Cleaned and Bagged
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Vacuum Service Rating
29 in Hg
Connection Type - Side 1
Sweat
Color - Valve Handle
Yellow
Handle - Locking
Non-Locking
Maximum Pressure - Steam
150 PSI WSP
Operating Temperature - Maximum
450 Degrees F
Connection Gender - Side 2
Female
Coefficient of Volume (Cv)
0.01
Color - Valve Body
Bronze
Connection Type - Side 2
Sweat
Valve Series
82

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Three-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
