  6. 1/2" FNPT Cast Bronze Ball Cone Check Valve

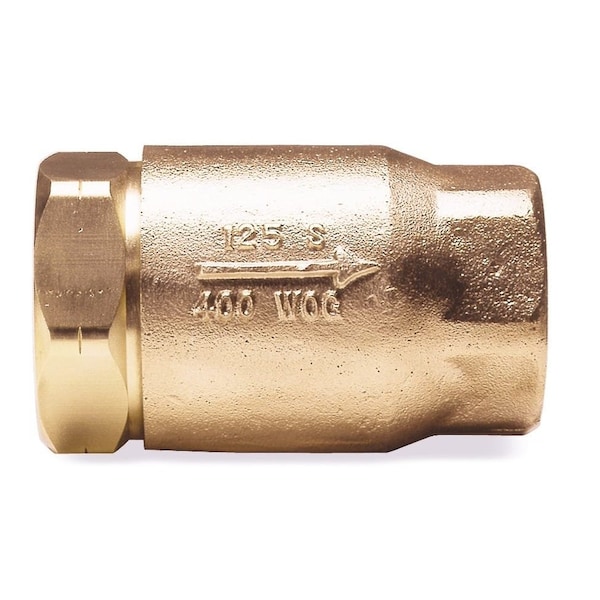

Apollo Valves 1/2" FNPT Cast Bronze Ball Cone Check Valve 61-503-01 - main

1/2" FNPT Cast Bronze Ball Cone Check Valve

  • Mfr # 61-503-01

  • Zoro # G0093591

product price:  $41.79
/ea

Key Features

Pipe Size
1/2"
Connection Type
NPT
Body Material
Bronze
Flow
1.4 gpm
Size
1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
61-503-01
Zoro #
G0093591
UPC #
670750632563
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Size
1/2"
Overall Height
1-1/8"
Pipe or Tube Size - Check Valves
1/2"
Width
1-1/8"
Length
2-5/16"
Overall Length
2.31 in
Pipe or Tube Size
1/2 in
Connection Size - Side 2
1/2 in
Connection Size - Side 1
1/2 in
Nominal Valve Size
1/2 in

Details

Connection Type
NPT
Body Material
Bronze
Flow
1.4 gpm
Item
Check Valve
Max. Pressure
400 psi
Cracking Pressure
0.5 psi
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Seal Material - Check Valves
EPDM
Application - Valves
General Purpose
Compliance
ISO 9001:2008
Flow Design
Single
Seat Material
EPDM
Max. Steam Pressure - Valves
400 psi WSP
Max. Temp. - Valves
180 Degrees F
Flow - Valves
1.40 gpm
Max. Water Pressure - Valves
400 psi
Seal Material
EPDM
Material of Construction
Cast Bronze
Spring Material
316 Stainless Steel
Spring Material - Check Valves
316 Stainless Steel
Mounting Position
Vertical or Horizontal
Max. Temp.
250 Degrees F
Max. Steam Pressure
400 psi
Min. Temp. - Valves
33 Degrees F
Seat Material - Check Valves
EPDM
Sub-Category
Bronze
Standards
Build America Buy America (BABA) Act, Buy American Act (BAA), CRN
Body Material - Valves
Bronze
Max. Water Pressure
400 psi
Cracking Pressure - Check Valves
0.500 psi
Connection Type - Check Valves
FNPT x FNPT
Mechanism and Body Design
Inline Ball Cone
Mounting Orientation
Horizontal, Vertical
Seal
EPDM
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
4 psi
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
33 Degrees F
Valve Ways
2-Way
Silent Check
Standard
For Media
Natural Gas
Connection Gender - Side 1
Female
Valve Body Style
Inline
Coefficient of Volume (Cv)
1.4
Includes Counterweight
No Counterweight
Check Mechanism
Swing
Check Mechanism Material
EPDM
Connection Type - Side 2
NPT
Maximum Pressure - Operating
400 psi
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Operating Temperature - Maximum
350 Degrees F
Valve Series
61

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Bronze, Pipe or Tube Size 1/2 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves 400 psi WSP, Seat Material EPDM, Spring Material 316 Stainless Steel, Flow - Valves 1.4 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
