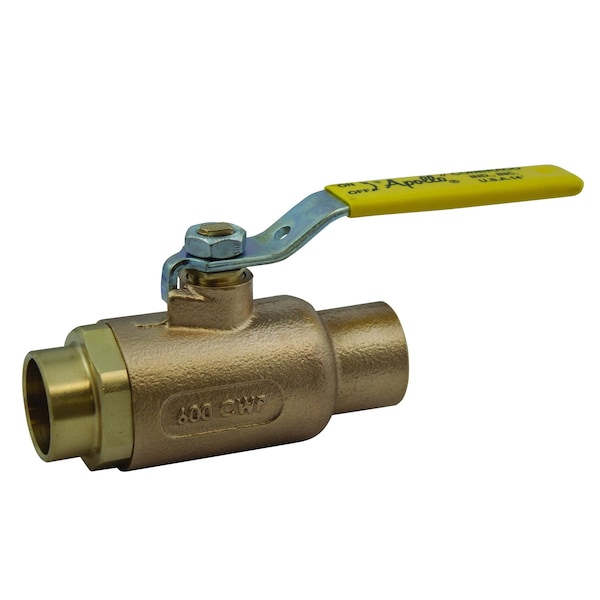

Apollo Valves 1/2" Sweat Bronze Ball Valve Inline 7020301 - main

1/2" Sweat Bronze Ball Valve Inline

  • Mfr # 7020301

  • Zoro # G0821721

product price: $25.59
/ea

Key Features

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7020301
Zoro #
G0821721
UPC #
670750664908
Country of Origin
United States

Dimensions

Pipe Size
1/2 in
Overall Length
2.87 in
Handle Height
1.75 in
Handle Length
3.85 in
Connection Size - Side 2
1/2 in
Nominal Valve Size
1/2 in
Connection Size - Side 1
1/2 in

Details

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air
Connection Type
Sweat x Sweat
Item
Ball Valve
Stem Type
Blowout Proof
Body Material
Bronze
Handle Material
Steel
Seat Material
RPTFE
Ball Valve Product Group
Manual
Compliance
MSS SP-110
Features
Heavy Duty
Standards
ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Temp. Range
-20 Degrees to 450 Degrees F
Stem Material
Brass
Max. Pressure
600 PSI CWP
Handle Type
Lever
Seal Material
PTFE
Type
Two Piece
Coefficient of Volume (Cv)
0.01
Cleaned and Bagged
Not Cleaned and Bagged
Connection Type - Side 2
Sweat
Connection Type - Side 1
Sweat
Color - Valve Handle
Yellow
Operating Temperature - Maximum
350 Degrees F
Vacuum Service Rating
29 in Hg
3-A Standard Compliance
Not Rated
Handle - Locking
Non-Locking
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Color - Valve Body
Bronze
Maximum Pressure - Steam
150 PSI WSP
Valve Series
70

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Air, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Standard Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
