Apollo Valves

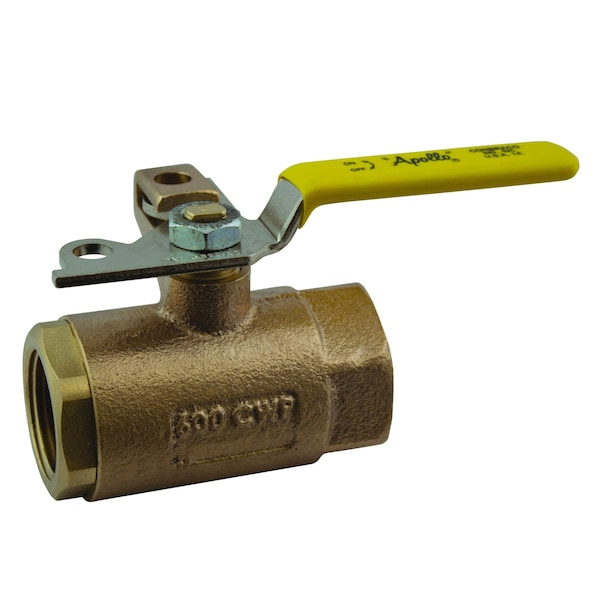

1/4" FNPT Bronze Ball Valve Inline

product price: $30.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Body Style Inline
  • Ball Material Chrome Plated Brass
  • Compliance MSS SP-110
  • Stem Type Blowout Proof
See all product information

Product Information

Dimensions

Pipe Size 1/4"
Overall Length 4.16"
Connection Size - Side 1 1/4 in
Nominal Valve Size 1/4 in
Handle Length 2.87 in
Connection Size - Side 2 1/4 in

Details

Body Material Bronze
Body Style Inline
Ball Material Chrome Plated Brass
Compliance MSS SP-110
Stem Type Blowout Proof
Handle Type Pad Locking Lever
Stem Material Brass
Port Standard
Seat Material RPTFE
Features May be Padlocked Open or Closed and includes Auto-Drain
Connection Type FNPT x FNPT
Temp. Range 50 Degrees to 200 Degrees F
Ball Valve Basic Body Material Bronze
Valve Structure 2-Piece
Max. Pressure 600 psi CWP
Standards MSS SP-110, ASTM B16
Body Seal Material PTFE
Max. Steam Pressure 150 PSI WSP
Ball Valve Product Group Manual
Item Ball Valve
Handle Material Zinc Plated Steel with Vinyl Grip
Seal Material PTFE
Connection FNPT
Type Two Piece, Auto Drain Locking Handle
Material of Construction Bronze
Sub-Category Bronze Ball Valves
Ball Port Style Standard Port
Maximum Pressure - Steam 150 psi
Color - Valve Body Bronze
Connection Gender - Side 2 Female
Operating Temperature - Minimum 50 Degrees F
For Media Air
Valve Ways 2-Way
Coefficient of Volume (Cv) 0.01
Color - Valve Handle Yellow
Operating Temperature - Maximum 200 Degrees F
Connection Gender - Side 1 Female
Manufacturer Warranty 5 yr
Handle - Locking Locking
Maximum Pressure - Combustible Gas Not Rated
Valve Construction Two-Piece
Cleaned and Bagged Not Cleaned and Bagged
Valve Body Style Straight
Connection Type - Side 2 NPT
Maximum Pressure - Operating 600 psi
Connection Type - Side 1 NPT
3-A Standard Compliance Not Rated

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Air, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Locking, Handle Type Lever

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
