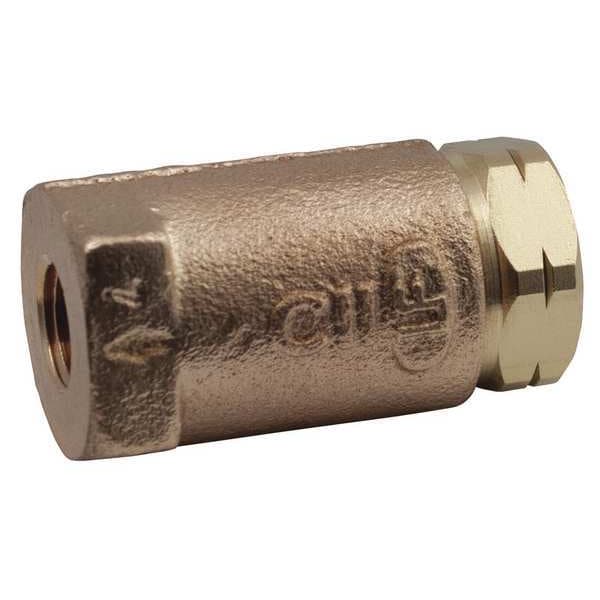

1/4" FNPT Lead Free Bronze Ball Cone Check Valve

  • Mfr # 61LF10101

  • Zoro # G5153391

product price:
$
47.39
/ea

Key Features

Pipe Size
1/4"
Hex Size
1 3/25"
Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
Lead Free Bronze
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
61LF10101
Zoro #
G5153391
UPC #
670750510656
Country of Origin
United States
Connection Type
FNPT x FNPT
Connection
FNPT
Body Material
Lead Free Bronze
Item
Check Valve
Material of Construction
Lead Free Bronze
Mechanism and Body Design
Inline Ball Cone
Standards
CRN, NSF
Flow - Valves
0.85 gpm
Min. Temp. - Valves
33 Degrees F
Flow
0.85 gpm
Max. Pressure
400 psi / 125 psi Steam
Compliance
NSF61-G, NSF 383
Max. Water Pressure
400 psi Non Shock CWP
Body Material - Valves
Bronze
Cracking Pressure
0.5 psi
Max. Temp.
350 Degrees F
Cracking Pressure - Check Valves
0.500 psi
Max. Steam Pressure - Valves
125 psi WSP
Max. Temp. - Valves
180 Degrees F
Connection Type - Check Valves
FNPT x FNPT
Flow Design
Single
Application - Valves
General Purpose
Spring Material
316 Stainless Steel
Item - Check Valves
Check Valve
Max. Water Pressure - Valves
400 psi
Spring Material - Check Valves
Stainless Steel
Seat Material
Glass-Filled Polypropylene
Seat Material - Check Valves
RPTFE
Max. Steam Pressure
125 psi
Sub-Category
Bronze
Mounting Position
Vertical or Horizontal
Mounting Orientation - Check Valves
Horizontal, Vertical
Seal Material - Check Valves
EPDM
Seal Material
EPDM
Mounting Orientation
Horizontal, Vertical
Type
Inline
For Media
Steam, Water
Check Mechanism
Ball
Includes Counterweight
No Counterweight
Coefficient of Volume (Cv)
0.85
Valve Body Style
Inline
NSF Certifications for Food and Drinking Water
NSF 61
Operating Temperature - Maximum
350 Degrees F
Maximum Pressure - Steam
125 psi
Maximum Pressure - Operating
400 psi
Connection Type - Side 1
NPT
3-A Standard Compliance
Not Rated
Vacuum Service Rating
Not Rated
Silent Check
Standard
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Operating Temperature - Minimum
33 Degrees F
Connection Gender - Side 1
Female
Check Mechanism Material
RPTFE
Valve Series
61

Description

APOLLO VALVES 61LF10101 is an inline ball cone check valve with a 1/4 in FNPT x FNPT connection and a lead-free bronze body. Rated for steam and water service within the specified pressure and temperature ranges, this valve features an inline check valve configuration for one-direction flow applications. The single-flow design, 0.5 psi cracking pressure, and horizontal or vertical mounting support horizontal or vertical inline mounting.

Key Features:

  • 1/4 in nominal valve size with female NPT connections on both ends
  • Inline ball cone mechanism with single-flow design
  • Lead-free bronze body with EPDM seal
  • RPTFE check mechanism material and glass-filled polypropylene seat material
  • 316 stainless steel spring
  • Flow rating: 0.85 gpm; Cv: 0.85
  • Cracking pressure: 0.5 psi
  • Maximum water pressure: 400 psi non-shock CWP
  • Maximum steam pressure: 125 psi WSP
  • Operating temperature range: 33°F to 350°F
  • Mounting orientation: horizontal or vertical
  • Compliance/standards: NSF and CRN certifications apply
  • Overall length: 2.06 in; width: 1.12 in
