  11. 1/4" FNPT x MNPT Bronze Ball Valve Inline

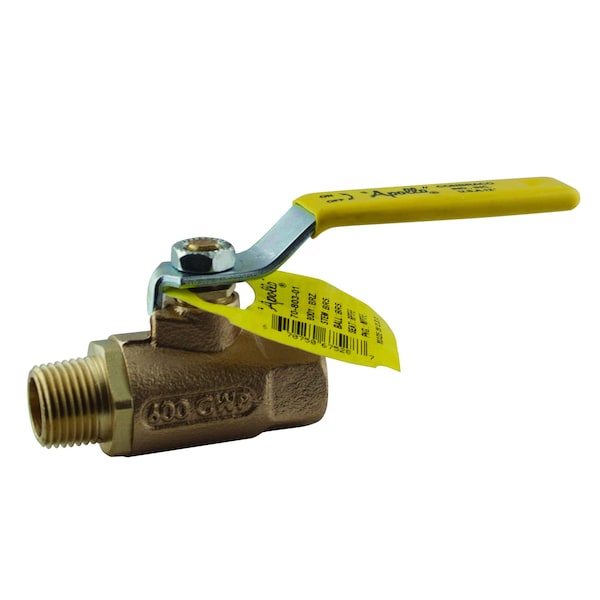

Apollo Valves 1/4" FNPT x MNPT Bronze Ball Valve Inline 7080101 - main

1/4" FNPT x MNPT Bronze Ball Valve Inline

  • Mfr # 7080101

  • Zoro # G0898703

product price: $29.19
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7080101
Zoro #
G0898703
UPC #
670750674839
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
2.43 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Handle Length
3.87 in
Handle Height
1.75 in
Connection Size - Side 1
1/4 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
MNPT x FNPT
Item
Ball Valve
Temp. Range
-20 Degrees to 450 Degrees F
Seat Material
RPTFE
Stem Material
Brass
Handle Type
Lever
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Handle Material
Zinc Plated Steel
Stem Type
Blowout Proof
Max. Pressure
600 PSI CWP
Compliance
MSS SP-110
Features
Heavy Pattern Construction
Body Material
Bronze
Ball Valve Product Group
Manual
Seal Material
PTFE
Type
Two Piece
Coefficient of Volume (Cv)
0.01
Vacuum Service Rating
29 in Hg
Connection Type - Side 2
NPT
Maximum Pressure - Steam
150 PSI WSP
Color - Valve Body
Bronze
Connection Gender - Side 1
Female
Color - Valve Handle
Yellow
Operating Temperature - Maximum
425 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Cleaned and Bagged
Not Cleaned and Bagged
Handle - Locking
Non-Locking
Connection Gender - Side 2
Female
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Valve Series
70

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
