  11. 2" FNPT Bronze Ball Valve 2-Way
Shop All Ball Valves
No Product Image Available
Apollo Valves

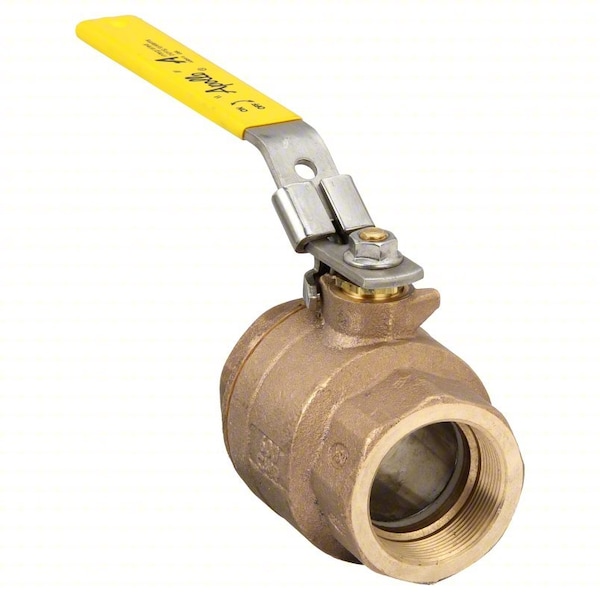

2" FNPT Bronze Ball Valve 2-Way

product price: $202.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Body Style Inline
  • Tube Size 2 in
  • Hose I.D. 2 in
  • Ball Valve Product Group Manual
See all product information

Product Information

Dimensions

Pipe Size 2 in
Tube Size 2 in
Overall Length 6.02 in
Connection Size - Side 2 2 in
Handle Length 7.72 in
Connection Size - Side 1 2 in
Nominal Valve Size 2 in

Details

Body Material Bronze
Body Style Inline
Hose I.D. 2 in
Ball Valve Product Group Manual
Ball Valve Basic Body Material Bronze
Compliance MSS SP-110
Max. Pressure 600 psi CWP
Handle Type Lever
Handle Material PVC, Zinc-Plated Steel
Item Manual Two-Way Ball Valve
Seat Material PTFE
Ball Material Chrome-Plated Brass
Body Seal Material RPTFE
Temp. Range -20 Degrees to 450 Degrees F
Standards ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Max. Steam Pressure 150 psi WSP
Connection Type FNPT x FNPT
Port Full
Stem Material PTFE
Stem Type Blowout Resistant
Valve Structure 2-Piece
Features Dezincification Resistant
Seal Material PTFE
Sub-Category Bronze Ball Valves
Coefficient of Volume (Cv) 0.01
3-A Standard Compliance Not Rated
Operating Temperature - Minimum -20 Degrees F
Handle - Locking Locking
Connection Type - Side 1 NPT
Vented Ball Valve Vented
Valve Body Style Straight
Vacuum Service Rating 29 in Hg
Connection Type - Side 2 NPT
Operating Temperature - Maximum 450 Degrees F
For Media Steam
Connection Gender - Side 1 Female
Manufacturer Warranty 5 yr
Color - Valve Body Bronze
Valve Construction Two-Piece
Color - Valve Handle Yellow
Valve Ways 2-Way
Maximum Pressure - Operating 600 psi
Cleaned and Bagged Not Cleaned and Bagged
Connection Gender - Side 2 Female
Maximum Pressure - Combustible Gas Not Rated
Maximum Pressure - Steam 150 psi
Ball Port Style Full Port

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
