  11. 2" FNPT Bronze Ball Valve Inline

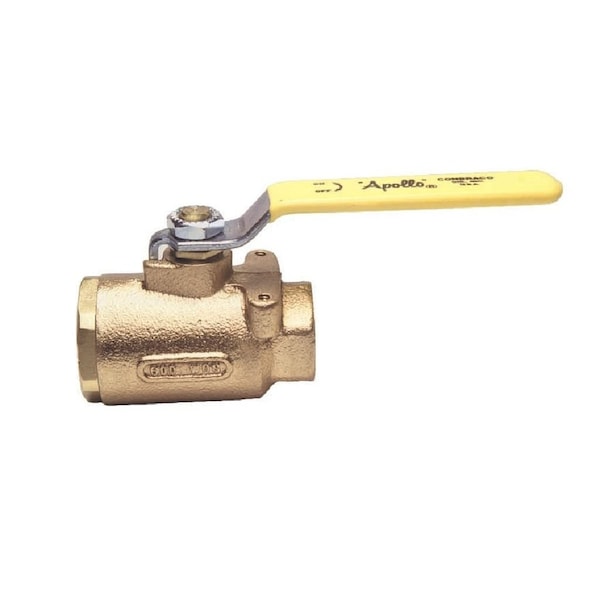

Apollo Valves 2" FNPT Bronze Ball Valve Inline 7710801 - main

2" FNPT Bronze Ball Valve Inline

  • Mfr # 7710801

  • Zoro # G0476971

product price: $229.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7710801
Zoro #
G0476971
UPC #
670750704345
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Length
5.37 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Handle Length
8 in
Handle Height
3.71 in

Details

Ball Material
Chrome Plated Bronze
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
FNPT x FNPT
Item
Ball Valve
Stem Material
Brass
Compliance
ISO 9001
Handle Material
Zinc Plated Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Lever
Seat Material
RPTFE
Standards
ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Ball Valve Product Group
Manual
Temp. Range
Up to 500 Degrees F
Features
Mounting Pad for Actuation
Max. Pressure
600 PSI CWP
Body Material
Bronze
Seal Material
PTFE
Type
Two Piece
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Included Mounting
Actuator Mounting Pad
Coefficient of Volume (Cv)
0.01
Connection Gender - Side 2
Female
Connection Gender - Side 1
Female
Maximum Pressure - Steam
150 PSI WSP
Color - Valve Handle
Yellow
Color - Valve Body
Bronze
3-A Standard Compliance
Not Rated
Cleaned and Bagged
Not Cleaned and Bagged
Operating Temperature - Maximum
500 Degrees F
Vacuum Service Rating
29 in Hg
Maximum Pressure - Combustible Gas
Not Rated
Handle - Locking
Non-Locking
Valve Series
77

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Bronze, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
