  11. 2" FNPT Bronze Ball Valve Inline

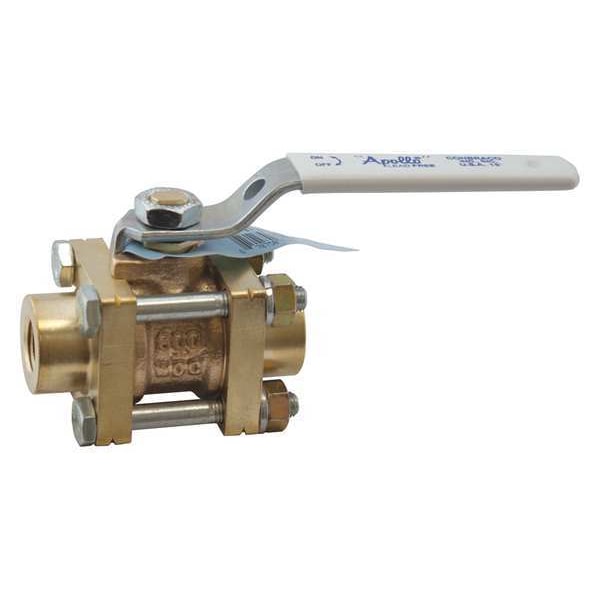

Apollo Valves 2" FNPT Bronze Ball Valve Inline 82LF14801 - main

2" FNPT Bronze Ball Valve Inline

  • Mfr # 82LF14801

  • Zoro # G5152892

product price: $452.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82LF14801
Zoro #
G5152892
UPC #
670750770388
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Length
6.03 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in

Details

Ball Material
316 stainless steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Three-Piece
For Media
Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Ball Valve Product Group
Manual
Seat Material
RPTFE
Max. Pressure
600 PSI CWP
Standards
ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
Stem Type
Blowout Proof
Body Material
Bronze
Stem Material
316 Stainless Steel
Handle Type
Lever
Features
Blue Hang Tag, White Grip
Handle Material
Zinc Plated Steel with Vinyl Grip
Compliance
ISO 9001
Temp. Range
-20 Degrees to 450 Degrees F
Seal Material
PTFE
Type
Three Piece
NSF Certifications for Food and Drinking Water
NSF 61
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Color - Valve Handle
White
Coefficient of Volume (Cv)
0.01
Color - Valve Body
Bronze
Maximum Pressure - Combustible Gas
Not Rated
Vented Ball Valve
Vented
Maximum Pressure - Steam
150 PSI WSP
Operating Temperature - Maximum
400 Degrees F
Vacuum Service Rating
29 in Hg
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Operating Temperature - Minimum
-20 Degrees F
Handle - Locking
Non-Locking
Cleaned and Bagged
Not Cleaned and Bagged
3-A Standard Compliance
Not Rated
Valve Series
82

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Water, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
