  11. 2" FNPT Bronze Ball Valve Inline Single Union
Apollo Valves 2" FNPT Bronze Ball Valve Inline Single Union 7030801 - main

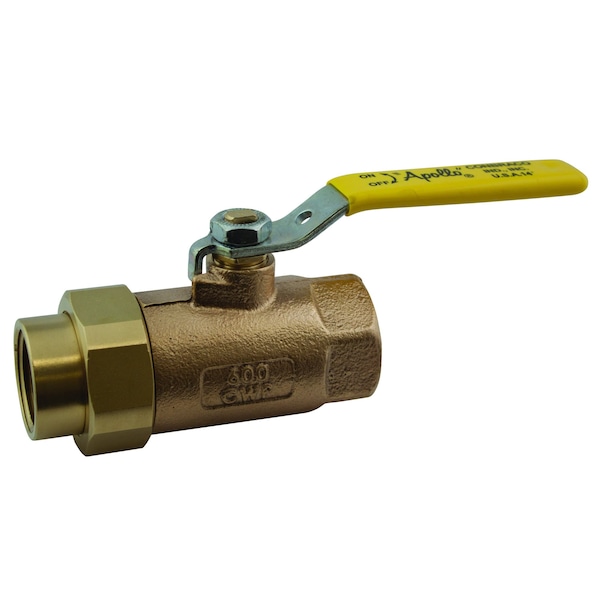

2" FNPT Bronze Ball Valve Inline Single Union

  • Mfr # 7030801

  • Zoro # G1437247

product price: $240.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline Single Union
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
7030801
Zoro #
G1437247
UPC #
670750670350
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Length
5.59 in
Handle Height
3.24 in
Connection Size - Side 2
2 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in
Handle Length
8 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline Single Union
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Steam
Connection Type
FNPT UNION x FNPT BALL VALVE
Item
Ball Valve
Stem Material
Brass
Stem Type
Blowout Proof
Ball Valve Product Group
Manual
Max. Pressure
600 PSI CWP
Handle Material
Zinc Plated Steel with Vinyl Grip
Temp. Range
-20 Degrees to 450 Degrees F
Seat Material
RPTFE
Handle Type
Lever
Features
Heavy Pattern Construction
Standards
ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Compliance
MSS SP-110, UL Listed
Body Material
Bronze
Seal Material
PTFE
Type
Two Piece, Union End
Maximum Pressure - Steam
150 PSI WSP
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Color - Valve Handle
Yellow
Coefficient of Volume (Cv)
0.01
Cleaned and Bagged
Not Cleaned and Bagged
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Vacuum Service Rating
29 in Hg
Handle - Locking
Non-Locking
Color - Valve Body
Bronze
Connection Gender - Side 2
Female
Operating Temperature - Maximum
500 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Valve Series
70

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
