  11. 2" Press Brass Ball Valve Inline

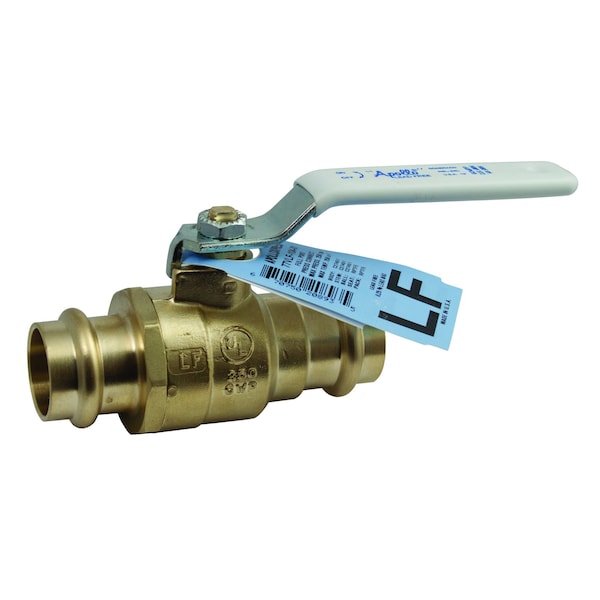

Apollo Valves 2" Press Brass Ball Valve Inline 77VLF10801 - main

2" Press Brass Ball Valve Inline

  • Mfr # 77VLF10801

  • Zoro # G5273055

product price: $191.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Lead Free Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
77VLF10801
Zoro #
G5273055
UPC #
670750208973
Country of Origin
United States

Dimensions

Pipe Size
2 in
Overall Length
6.57 in
Handle Length
7.75 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Handle Height
3.69 in

Details

Ball Material
Lead Free Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
Press x Press
Item
Ball Valve
Stem Type
Blowout Proof
Ball Valve Product Group
Manual
Temp. Range
0 Degrees F to 250 Degrees F
Seat Material
RPTFE
Standards
ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), Material Quality C27451 (Lead-Free)
Stem Material
Brass
Max. Pressure
250 PSI CWP
Features
Press End Connections
Body Material
Brass
Compliance
ISO 9001
Handle Material
Plated Steel/Insulated Polyvinyl
Handle Type
Lever
Seal Material
EPDM
3-A Standard Compliance
Not Rated
Cleaned and Bagged
Not Cleaned and Bagged
Operating Temperature - Maximum
250 Degrees F
Color - Valve Handle
Yellow
Color - Valve Body
Bronze
Connection Type - Side 1
Press
Handle - Locking
Non-Locking
Maximum Pressure - Combustible Gas
Not Rated
Coefficient of Volume (Cv)
0.01
Maximum Pressure - Steam
15 PSI WSP
Operating Temperature - Minimum
0 Degrees F
Connection Type - Side 2
Press
Vacuum Service Rating
29 in Hg
Valve Series
77V

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 15 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
