  11. 3/4" FNPT Bronze Ball Valve Inline
Shop All Ball Valves
No Product Image Available
Apollo Valves

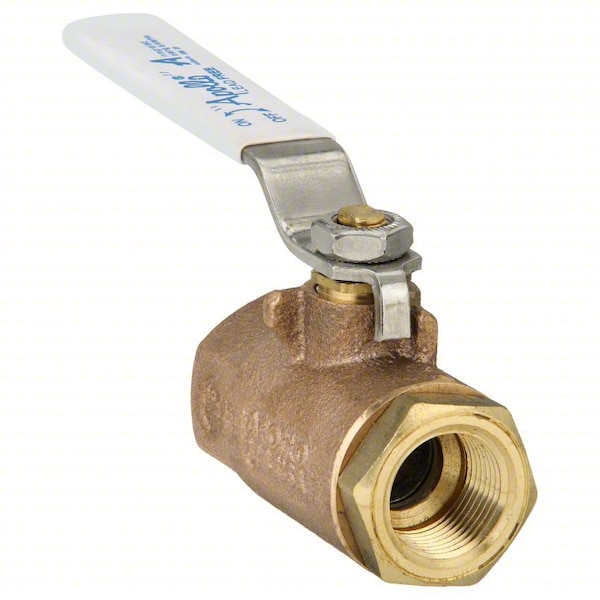

3/4" FNPT Bronze Ball Valve Inline

product price: $48.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Body Style Inline
  • Standards Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
  • Seat Material PTFE
  • Ball Valve Basic Body Material Bronze
See all product information

Product Information

Dimensions

Pipe Size 3/4 in
Overall Length 3 in
Connection Size - Side 1 3/4 in
Connection Size - Side 2 3/4 in
Handle Length 4.87 in
Nominal Valve Size 3/4 in

Details

Body Material Bronze
Body Style Inline
Standards Build America Buy America Act (BABA), Buy American Act (BAA), CRN, Material Quality C89836 (Lead-Free)
Seat Material PTFE
Ball Valve Basic Body Material Bronze
Max. Steam Pressure 150 PSI WSP
Max. Pressure 600 psi CWP
Features Blue Hang Tag, White Grip
Stem Type Blowout Resistant
Stem Material Brass
Compliance MSS SP-110
Valve Structure 2-Piece
Ball Valve Product Group Manual
Ball Material Chrome-Plated Brass
Connection Type FNPT x FNPT
Handle Type Lever
Handle Material Stainless Steel
Temp. Range -20 Degrees to 450 Degrees F
Item Manual Two-Way Ball Valve
Port Standard
Seal Material RPTFE
Sub-Category Bronze Ball Valves
Color - Valve Handle Yellow
Connection Gender - Side 1 Female
3-A Standard Compliance Not Rated
Connection Gender - Side 2 Female
Valve Ways 2-Way
Valve Construction Two-Piece
Ball Port Style Standard Port
Handle - Locking Non-Locking
For Media Steam, Water
Color - Valve Body Bronze
Connection Type - Side 2 NPT
Maximum Pressure - Operating 600 psi
Connection Type - Side 1 NPT
NSF Certifications for Food and Drinking Water NSF 61
Vacuum Service Rating 29 in Hg
Operating Temperature - Minimum -20 Degrees F
Coefficient of Volume (Cv) 0.01
Cleaned and Bagged Not Cleaned and Bagged
Maximum Pressure - Steam 150 psi
Manufacturer Warranty 5 yr
Valve Body Style Straight
Operating Temperature - Maximum 350 Degrees F
Maximum Pressure - Combustible Gas Not Rated

Description

Manual Two-Way Ball Valve, Body Material Bronze, For Media Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Standard Port, Handle - Locking Non-Locking
