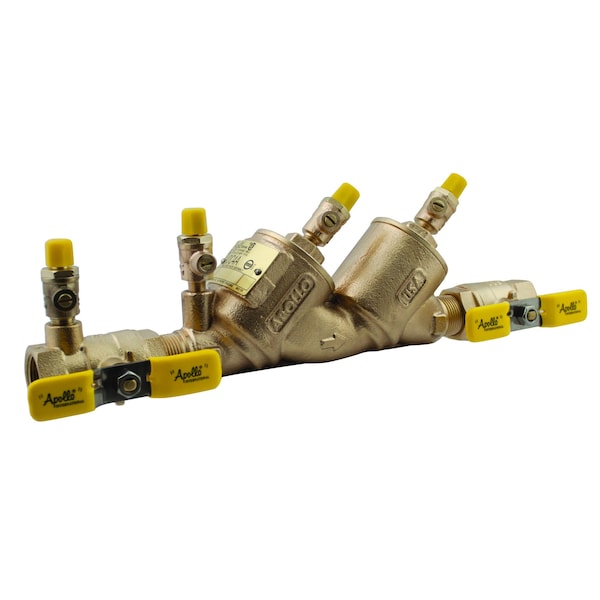

Double Check Backflow Preventer, 3/4 in

Mfr # 4A104A2F
Zoro # G509944130

237.99

Free Shipping & Returns

Key Features

Body Material

Bronze

Temp. Range

33 Degrees F to 180 Degrees F

Width

3 in

Connection

NPS

Standards

Build America Buy America (BABA) Act, Buy American Act (BAA)

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4A104A2F
Zoro #: G509944130
UPC #: 670750109027
Country of Origin: United States

Dimensions

Width: 3 in
Size: 3/4 in
Length: 12.63 in
Overall Height: 3.5 in
Connection Size - Side 2: 3/4 in
Connection Size - Side 1: 3/4 in
Nominal Valve Size: 3/4 in
Check Valve Length: 8 1/2 in
Overall Width: 3 in
Overall Length: 12.63 in
Wire Rope Length: 12.63 in

Details

Item: Double Check Valve Backflow Assembly
Body Material: Bronze
Temp. Range: 33 Degrees F to 180 Degrees F
Connection: NPS
Standards: Build America Buy America (BABA) Act, Buy American Act (BAA)
Max. Pressure: 175 psi
Includes: No Items
Spring Material: Stainless Steel
Flow: 45 gpm
Seat Material: Silicone
Max. Temp.: 180 Degrees F
Features: 5 Year Warranty, Ball Valve Shut-offs with SS Handles and Nuts Standard, Chloramine-Resistant Elastomers, Compact, Yet Easy to Maintain, Corrosion Resistant, Designed, Cast, Machined, Assembled and Tested in the USA, Low Pressure Loss, No Special Tools Required, Threaded Testcock Protectors, Top Access for Fast Testing and Maintenance
Compliance: ASSE 1015, AWWA C510, CSA, IAPMO, UL, ULC
Backflow Preventer Type: Double Check Assembly (DC)
Connection Type - Side 1: NPT
Includes Freeze Sensor: No Freeze Sensor
Mounting Orientation: Horizontal, Vertical
Includes Atmospheric Vent: No Atmospheric Vent
Hazard Protection Level: Low Hazard
Operating Temperature - Minimum: 33 Degrees F
For Media: Water
Check Mechanism Material: Glass-Filled PPO
Number of Test Ports: 4
Connection Type - Side 2: NPT
Shut-Off Valve Included: Ball Valve
Connection Gender - Side 2: Female
Handle Material: Stainless Steel
Includes Strainer: No Strainer
Maximum Pressure - Operating: 175 psi
Manufacturer Warranty: 5 yr
Operating Temperature - Maximum: 180 Degrees F
Connection Gender - Side 1: Female
Valve Series: 4A

Description

Double Check Backflow Preventer,3/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
