  11. Dual Check Backflow Preventer, 3/8 in
No Product Image Available

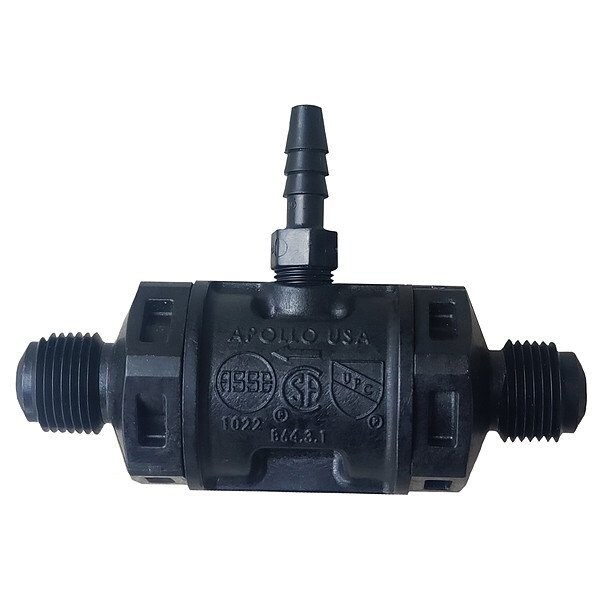

Dual Check Backflow Preventer, 3/8 in

  • Mfr # 4C10201A

  • Zoro # G409935313

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Body Material
Plastic
Temp. Range
33 Degrees F to 130 Degrees F
Features
5 Year Warranty, Atmospheric Vent Provides Indication of Problems, Compact Design, Integral Strainer for Equipment Protection, Lead-Free, Lowest Head Loss, Non-Metallic Body for Corrosion Resistance
Size
3/8 in
Compliance
ASSE, ASSE 1022, CSA, IAPMO, NSF/ANSI/CAN 61, UPC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4C10201A
Zoro #
G409935313
UPC #
191988080211
Country of Origin
United States

Dimensions

Size
3/8 in
Overall Height
1.74 in
Length
3 11/16 in
Connection Size - Side 1
3/8 in
Overall Width
1.74 in
Overall Length
3.7 in
Connection Size - Side 2
3/8 in
Nominal Valve Size
3/8 in

Details

Item
Beverage Backflow Preventer 3/8"
Body Material
Plastic
Temp. Range
33 Degrees F to 130 Degrees F
Features
5 Year Warranty, Atmospheric Vent Provides Indication of Problems, Compact Design, Integral Strainer for Equipment Protection, Lead-Free, Lowest Head Loss, Non-Metallic Body for Corrosion Resistance
Compliance
ASSE, ASSE 1022, CSA, IAPMO, NSF/ANSI/CAN 61, UPC
Flow
14 gpm
Seat Material
EPDM
Spring Material
Stainless Steel
Max. Temp.
130 Degrees F
Standards
NSF
Max. Pressure
200 psig
Connection
SAE Flare
Connection Gender - Side 1
Male
Check Mechanism Material
Acetal/EPDM/Stainless Steel
Operating Temperature - Maximum
180 Degrees F
Includes Freeze Protection
No Freeze Protection
Includes Atmospheric Vent
Atmospheric Vent Included
Primary Installation Type
Carbonated Beverage Lines
Connection Gender - Side 2
Male
Maximum Pressure - Operating
200 psi
Connection Type - Side 1
Flare
Seal Material
EPDM
Hazard Protection Level
Low Health Hazard
Connection Type - Side 2
Flare
For Media
Carbonated Beverages, Water
Field Testable
Not Field Testable
Manufacturer Warranty
5 yr
Operating Temperature - Minimum
33 Degrees F
Cracking Pressure
1 psi
Valve Series
4C

Description

Beverage Backflow Preventer 3/8 In., Size 3/8 in, Connection SAE Flare, Body Material Plastic, Temp. Range 33 Degrees F to 130 Degrees F, Max. Temp. 130 Degrees F, Max. Pressure 200 psig, Length 3 11/16 in, Features 5 Year Warranty, Atmospheric Vent Provides Indication of Problems, Compact Design, Integral Strainer for Equipment Protection, Lead-Free, Lowest Head Loss, Non-Metallic Body for Corrosion Resistance, Standards NSF, Compliance ASSE, ASSE 1022, CSA, IAPMO, NSF/ANSI/CAN 61, UPC
