  6. Manual 2-Way Ball Valve, Press, Bronze
Apollo Valves Manual 2-Way Ball Valve, Press, Bronze 77WLF104HCA - main

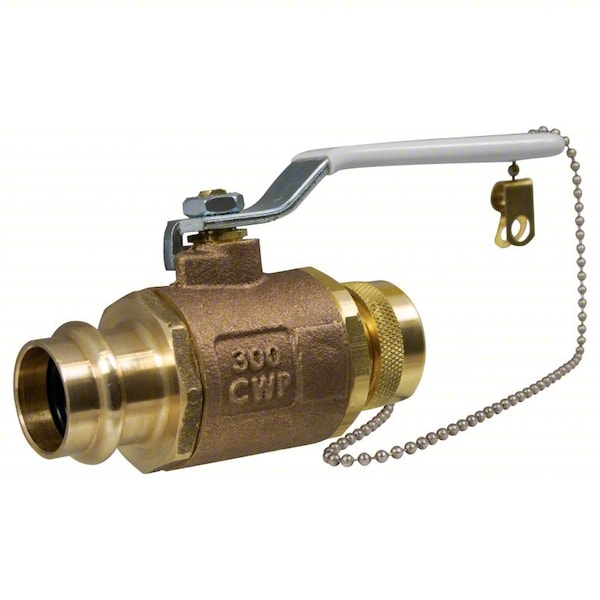

Manual 2-Way Ball Valve, Press, Bronze

  • Mfr # 77WLF104HCA

  • Zoro # G1943132

product price:  $66.39
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
2-Way
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
77WLF104HCA
Zoro #
G1943132
UPC #
191988005610
Country of Origin
United States

Dimensions

Pipe Size
3/4 in
Overall Length
3.8 in
Handle Height
1.91 in
Handle Length
3.75 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in

Details

Ball Material
Chrome Plated Brass
Body Style
2-Way
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
Press
Item
Ball Valve
Temp. Range
0 Degrees F to 250 Degrees F
Body Material
Brass, Bronze
Stem Type
Adjustable
Handle Material
Plated Steel, PVC
Seat Material
PTFE
Max. Pressure
300 PSI CWP
Standards
ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), IAPMO/ANSI Z1157, Material Quality C27451 (Lead-Free), MSS SP-110, NSF/ANSI/CAN 372
Seal Material
EPDM
Handle Type
Lever
Stem Material
Brass
Hose I.D.
3/4 in
NSF Certifications for Food and Drinking Water
NSF 61
Operating Temperature - Maximum
250 Degrees F
Vented Ball Valve
Vented
Handle - Locking
Non-Locking
Coefficient of Volume (Cv)
0.01
Color - Valve Handle
White
Cleaned and Bagged
Not Cleaned and Bagged
3-A Standard Compliance
Not Rated
Connection Type - Side 2
Press
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 1
Press
Maximum Pressure - Steam
15 PSI WSP
Valve Series
77W

Description

Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 15 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
