Shop APOLLO VALVES

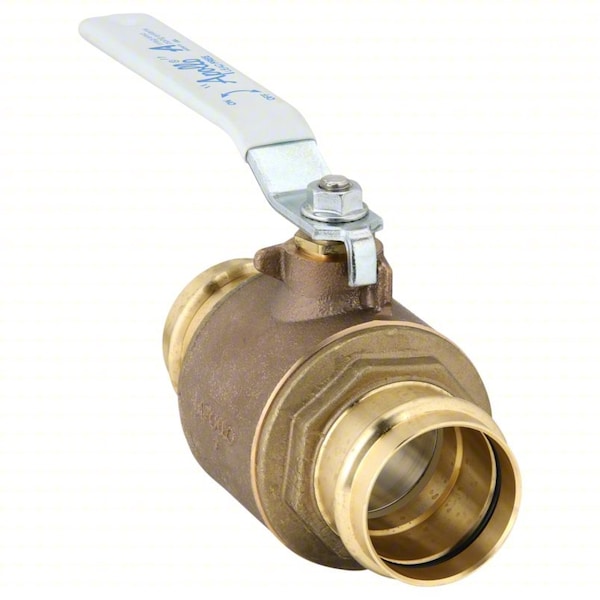

Manual 2-Way Ball Valve, Press, Bronze

  • Mfr # 77WLF14801A

  • Zoro # G1943029

product price:
$
294.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 Stainless Steel
Body Style
2-Way
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
77WLF14801A
Zoro #
G1943029
UPC #
191988086602
Country of Origin
United States
Ball Material
316 Stainless Steel
Body Style
2-Way
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Water
Connection Type
Press
Item
Ball Valve
Stem Type
Adjustable
Seal Material
EPDM
Seat Material
PTFE
Temp. Range
0 Degrees F to 250 Degrees F
Handle Material
Plated Steel, PVC
Max. Pressure
300 PSI CWP
Standards
ARRA Compliant, Build America Buy America Act (BABA), Buy American Act (BAA), IAPMO/ANSI Z1157, Material Quality C27451 (Lead-Free), MSS SP-110, NSF/ANSI/CAN 372
Handle Type
Lever
Body Material
Brass, Bronze
Stem Material
Stainless Steel
Hose I.D.
4 in
Maximum Pressure - Steam
15 psi
3-A Standard Compliance
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Connection Type - Side 1
Press
NSF Certifications for Food and Drinking Water
NSF 61
Cleaned and Bagged
Not Cleaned and Bagged
Vented Ball Valve
Vented
Coefficient of Volume (Cv)
0.01
Color - Valve Handle
White
Connection Type - Side 2
Press
Handle - Locking
Non-Locking
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
250 Degrees F
Valve Series
77W
Valve Body Style
Straight
Manufacturer Warranty
5 yr
Maximum Pressure - Operating
300 psi
Valve Construction
Two-Piece

Description

Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam 15 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
