  11. Pressure Vacuum Breaker, 3/4 in

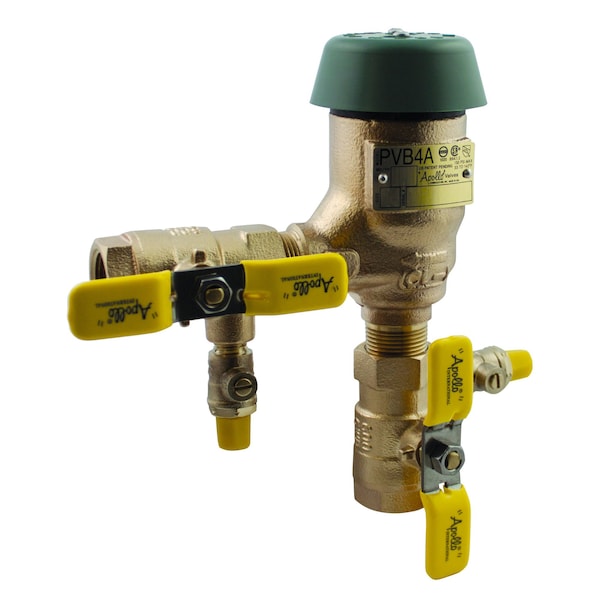

Apollo Valves Pressure Vacuum Breaker, 3/4 in 4A504A2F - main

Pressure Vacuum Breaker, 3/4 in

  • Mfr # 4A504A2F

  • Zoro # G909977547

product price: $92.55
/ea
Free Shipping & Returns

Key Features

Body Material
Bronze
Size
3/4 in
Connection Type
FNPT
Max. Pressure
150 psi
Material of Construction
Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4A504A2F
Zoro #
G909977547
UPC #
670750108686
Country of Origin
China

Dimensions

Size
3/4 in
Height
7 5/8 in
Connection Size - Side 1
3/4 in
Overall Width
6.5 in
Connection Size - Side 2
3/4 in
Nominal Valve Size
3/4 in
Overall Height
5.62 in

Details

Body Material
Bronze
Connection Type
FNPT
Max. Pressure
150 psi
Item
Pressure Vaccum Breaker 3/4 in
Material of Construction
Bronze
Compliance
ASSE 1020-2004e1, CSA B.64.1.2, IAPMO
Temp. Range
33 Degrees F to 140 Degrees F
Standards
Build America buy America (BABA) Act, Buy American Act (BAA), CSA B356, NSF
Connection Type - Side 1
NPT
Manufacturer Warranty
5 yr
Handle Type
Tee
Mounting Orientation
Horizontal, Vertical
Seal Material
EPDM
Handle Material
Stainless Steel
Number of Test Ports
2
Connection Gender - Side 2
Female
Operating Temperature - Maximum
140 Degrees F
Hazard Protection Level
Low Health Hazard
Includes Freeze Sensor
Freeze Sensor Included
For Media
Potable Water
Includes Atmospheric Vent
No Atmospheric Vent
Includes Spill Resistance
Not Spill Resistant
Seat Material
Silicone
Spring Material
Stainless Steel
Operating Temperature - Minimum
33 Degrees F
Cracking Pressure
1 psi
Connection Type - Side 2
NPT
Shut-Off Valve Included
Ball Valve
Maximum Pressure - Operating
150 psi
Connection Gender - Side 1
Female
Check Mechanism Material
Glass-Filled PPO
Flow
39 gpm
Valve Series
4A

Description

Pressure Vacuum Breaker,3/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
