  11. Safety Relief Valve, 1 In, 15 psi

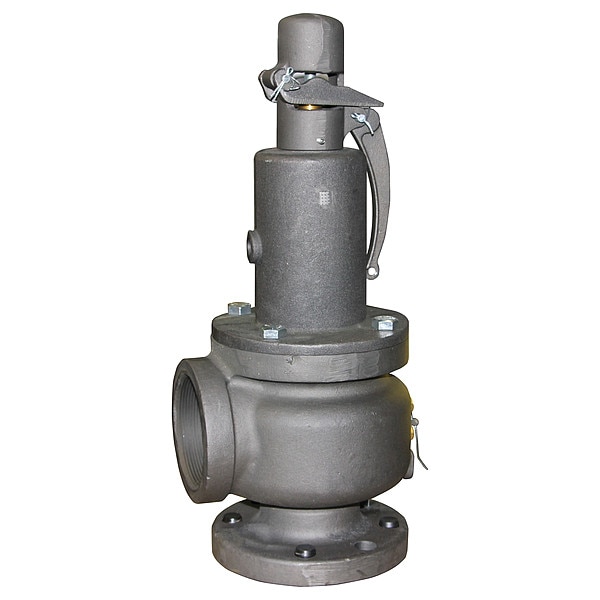

Apollo Valves Safety Relief Valve, 1 In, 15 psi 13202B15 - main

Safety Relief Valve, 1 In, 15 psi

  • Mfr # 13202B15

  • Zoro # G1340753

product price: $57.69
/ea

Key Features

Inlet Size
1"
Outlet Size
1"
Body Material
Cast Bronze
Outlet Type
FNPT
Inlet Type
MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13202B15
Zoro #
G1340753
UPC #
670750220319
Country of Origin
United States

Dimensions

Inlet Size
1"
Outlet Size
1"
Overall Height
2 1/16 in
Overall Length
5 3/8 in
Inlet Connection Size
1 in
Outlet Connection Size
1 in

Details

Body Material
Cast Bronze
Item
Safety Relief Valve
Outlet Type
FNPT
Inlet Type
MNPT
Spring Material
Stainless Steel
Factory Set Pressure
15 psi
BtuH
643,000
Seat Material
EPDM
Disc Material
EPDM
Temp. Range
0 Degrees to 250 Degrees F
Application
Low Pressure Steam Heating and Supply Boilers
Standards
ASME Section IV, CRN
Test Lever
Yes
Pressure Range
5 to 15 psi
Product Type
Safety Relief Valve
Inlet Connection Type
NPT
Operating Pressure - Minimum
5 psi
Outlet Connection Type
NPT
ASME Section Code
Section IV
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
250 Degrees F
Inlet Connection Gender
Male
Operating Pressure - Maximum
15 psi
For Media
Steam
Outlet Connection Gender
Female

Description

Safety Relief Valve, Body Material Cast Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 15 psi, Pressure Range 5 to 15 psi, 643,000 BtuH BtuH, Disc Material EPDM, Overall Height 2 1/16 in, Application Low Pressure Steam Heating and Supply Boilers, Overall Length 5 3/8 in, Seat Material EPDM, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Included, Standards CRN

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
