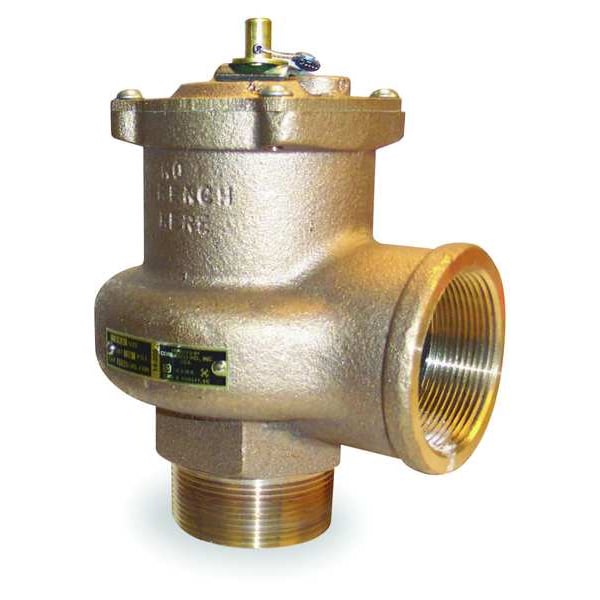

Safety Relief Valve, 2-1/2In, 15psi, Bronze

product price: $547.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Inlet Size 2 1/2"
  • Outlet Size 2 1/2"
  • Body Material Cast Bronze
  • Outlet Type FNPT
  • Inlet Type MNPT
See all product information

Product Information

Dimensions

Inlet Size 2 1/2"
Outlet Size 2 1/2"
Overall Height 8 1/4 in
Overall Length 7 1/2 in

Details

Body Material Cast Bronze
Item Safety Relief Valve
Outlet Type FNPT
Inlet Type MNPT
Steam Capacity (Lb./Hr.) 4,676
Application Low Pressure Steam Heating and Supply Boilers
Standards ASME Section IV, CRN, CSA
Pressure Range 5 to 15 psi
Factory Set Pressure 15 psi
Temp. Range 0 Degrees to 250 Degrees F
Disc Material PTFE
Seat Material Chrome Plated Seat w/ TFE Coated Brass Disc
Test Lever Yes
Spring Material Rust Proofed Steel

Description

Safety Relief Valve, Body Material Cast Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 2 1/2 in, Outlet Size 2 1/2 in, Factory Set Pressure 15 psi, Pressure Range 5 to 15 psi, Steam Capacity (Lb./Hr.) 4,676 lb/hr, Disc Material PTFE, Overall Height 8 1/4 in, Application Low Pressure Steam Heating and Supply Boilers, Overall Length 7 1/2 in, Seat Material Chrome Plated Seat w/ TFE Coated Brass Disc, Spring Material Rust Proofed Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Yes
