Apollo Valves

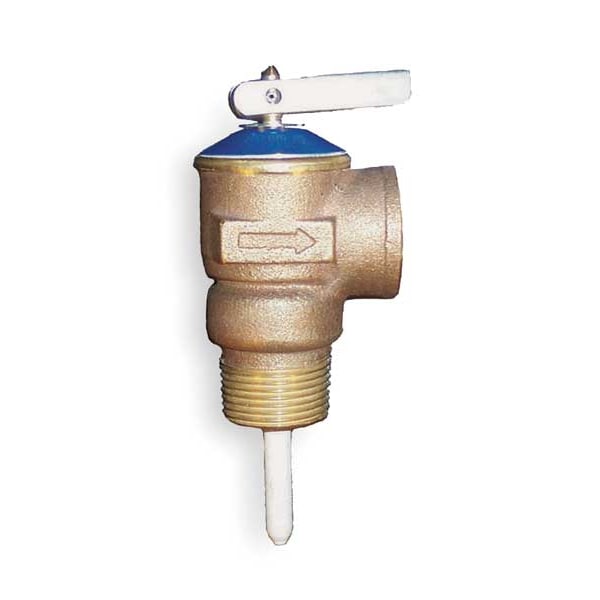

T and P Relief Valve, 3/4 In. Outlet

original price: $35.19
5% off
new price: $33.39
/ea
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Inlet Size 3/4"
  • Outlet Size 3/4"
  • Body Material Bronze
  • Outlet Type FNPT
  • Inlet Type MNPT
See all product information

Product Information

Dimensions

Inlet Size 3/4"
Outlet Size 3/4"
Shank Length Standard
Thermostat Length 3 in
Body Width 1 1/8 in
Body Height 6 1/8 in
Overall Width 1-1/8"
Overall Height 6-1/8"
Height 6-9/64"
Width 1-9/64"

Details

Body Material Bronze
Item Temperature and Pressure Relief Valve
Outlet Type FNPT
Inlet Type MNPT
Auto Re-Seating Yes
Standards Certified ANSI Z21.22 And CSA 4.4, Listed By ASME And CSA
Spring Material Stainless Steel
BtuH 105,000
Factory Set Pressure 125 psi
Max. Temp. 210 Degrees F
Type Direct Acting

Description

Temperature and Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Thermostat Length 3 in, Body Height 6 1/8 in, 105,000 BtuH, Factory Set Pressure 125 psi, Max. Temp. 210 Degrees F, Shank Length Standard, Auto Re-Seating Yes, Body Material Bronze, Spring Material Stainless Steel, Body Width 1 1/8 in, Standards Certified ANSI Z21.22 And CSA 4.4, Listed By ASME And CSA
