  6. Vacuum Breaker, Bronze, 1-1/4" W

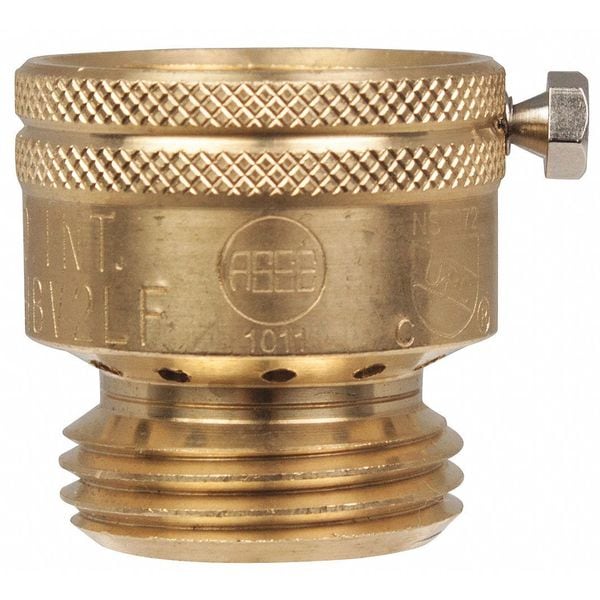

Apollo Valves Vacuum Breaker, Bronze, 1-1/4" W 38LF314AS - main

Vacuum Breaker, Bronze, 1-1/4" W

  • Mfr # 38LF314AS

  • Zoro # G6124286

product price:  $12.55
/ea

Key Features

Body Material
Brass
Size
3/4"
Connection Type
FNPT
Material of Construction
Brass
Width
1-1/4"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
38LF314AS
Zoro #
G6124286
UPC #
670750061127
Country of Origin
Taiwan, Province of China

Dimensions

Size
3/4"
Width
1-1/4"
Pipe Size
3/4"
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Overall Length
1.25 in
Nominal Valve Size
3/4 in

Details

Body Material
Brass
Connection Type
FNPT
Item
Vacuum Breaker
Material of Construction
Brass
Standards
NSF
Compliance
ASSE 1011 CSA B61.2
Flow
4.76 gpm
Connection Type - Side 2
GHT
Maximum Pressure - Operating
125 psi
Connection Gender - Side 1
Female
Includes Drain Capability
Manual Drain
Spring Material
Stainless Steel
Check Mechanism Material
Stainless Steel
Body Finish
Satin Brass
Operating Temperature - Minimum
33 Degrees F
Seat Material
EPDM
Includes Freeze Protection
Freeze Protection Included
Connection Type - Side 1
GHT
Vacuum Breaker Style
Hose Bib Vacuum Breaker
Operating Temperature - Maximum
180 Degrees F
For Media
Water
Manufacturer Warranty
2 yr
Includes Atmospheric Vent
No Atmospheric Vent
Connection Gender - Side 2
Male
Hose Bib Securing Mechanism
Break-Away Set Screw
Seal Material
Buna-N
Hazard Protection Level
Low Health Hazard
Valve Series
38

Description

The APOLLO VALVES 38LF314AS is a 3/4 in hose bib vacuum breaker for water applications. It is designed to help prevent cross-connection caused by back-siphonage and is intended for low health hazard protection. This model features a brass body with a satin brass finish, stainless steel internal components, and a hose connection configuration with 3/4 in GHT female and male connections.

Key Features of the APOLLO VALVES 38LF314AS Vacuum Breaker:

  • Vacuum Breaker Style: Hose bib vacuum breaker for hose connection backflow prevention.
  • Connection Size: 3/4 in inlet and outlet.
  • Connection Type: 3/4 in GHT female x 3/4 in GHT male.
  • Body Material: Brass body with satin brass finish.
  • Internal Components: Stainless steel check mechanism and spring.
  • Drain Feature: Manual drain capability.
  • Securing Mechanism: Break-away set screw provides tamper-proof protection.
  • Freeze Protection: Freeze protection included.
  • Flow Rate: 4.76 gpm.
  • Pressure Rating: Maximum operating pressure of 125 psi.
  • Temperature Range: 33 to 180 degrees F.
  • Seal Materials: Buna-N seal and EPDM seat.
  • Certifications/Standards: ASSE 1011, CSA B64.2, NSF, and NSF/ANSI 372 lead free.
