  11. 3W 4P 60A Hazardous Location Receptacle 600VAC

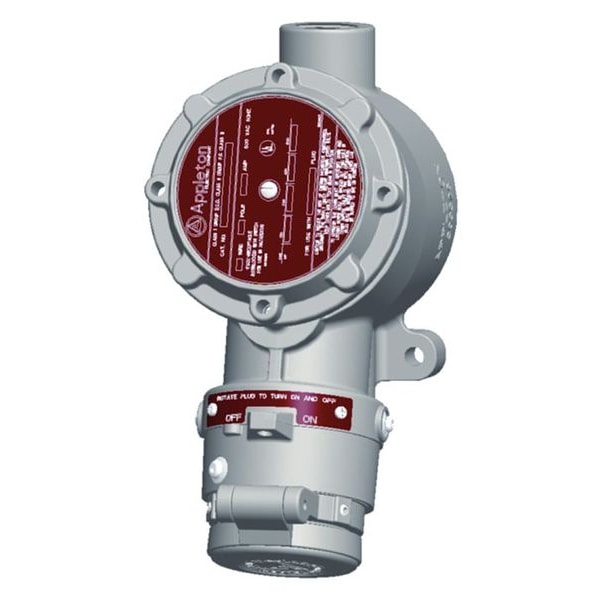

Appleton Electric 3W 4P 60A Hazardous Location Receptacle 600VAC FSQC5640 - main

3W 4P 60A Hazardous Location Receptacle 600VAC

  • Mfr # FSQC5640

  • Zoro # G6005562

product price: $2,182.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 7CD, 9FG
Number of Wires
3
Number of Poles
4
HP
30 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSQC5640
Zoro #
G6005562
UPC #
-
Country of Origin
Mexico

Dimensions

Hub Size
1 1/2 in
Minimum Wire Size
6 AWG
Overall Width
6.9 in
Hub Diameter
1.5 in
Overall Depth
8.13 in
Overall Height
15.2 in
Plug Cable Diameter
30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221;

Details

Item
Receptacle with Disconnect Switch
Voltage
600V AC
NEMA Rating
3, 3R, 4, 4X, 7CD, 9FG
Number of Wires
3
Number of Poles
4
HP
30 hp
Amps
60 A
Material
Copper-Free Aluminum
Finish
Epoxy Powder Coated
Hz
60
Mounting Box
Copperfree Aluminum
Standards
CSA C22.2 No. 159, CSA C22.2 No. 25, CSA C22.2 No. 30, CSA Certified 025875, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
Housing Material
Copper-Free Aluminum
Horsepower Rating
30 hp
Phase
Three
Voltage Rating
120/240/480/600V AC
For Environment
Hazardous Location
NEMA Enclosure Rating
3, 3R, 4, 4X, 7CD, 9FG
Grounding
Grounded
Compatible with Series
Powertite
Circuit Breaker
No
Insulation Material
Fiberglass-Reinforced Polyester
Number of Gangs
1
Current Rating
60 A
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Fuse Protection
Non-Fused
Disconnect Switch
Yes
Hub Type
Feed Through
Wire Connection Type
Quick-Disconnect Terminals
Locking Handle
No
Includes Mounting Hardware
Yes
Amperage
30, 60 or 100
Mounting Box Entries
Feed-Thru
Hazardous Area Classification
Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
Wire Range
30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
Materials and Finishes
Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.

Description

Receptacle with Disconnect Switch, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 60 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle No, NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG, Number of Poles 4, Number of Wires 3, Voltage Rating 120/240/480/600V AC
