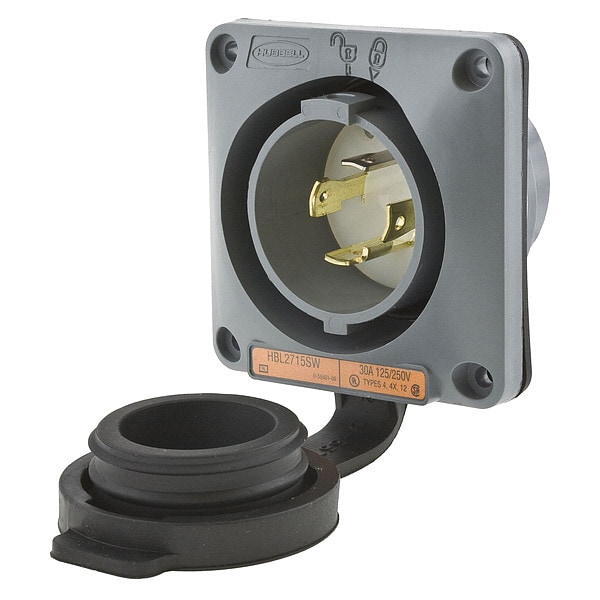

Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Flanged Locking Inlet, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Gray

  • Mfr # HBL2715SW

  • Zoro # G3245776

product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2715SW
Zoro #
G3245776
UPC #
783585231808
Country of Origin
United States

Dimensions

Face Plate Width
3.75 in
Minimum Wire Size
16 AWG
Face Plate Height
2.44 in
Maximum Wire Size
8 AWG
Cord Size
16 to 8 AWG

Details

Item
Watertight Flanged Locking Inlet
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
4X and Type 12, CSA Certified Type 4, UL Listed
Resistance Properties
Impact Resistant, Watertight
IP Rating
IP66
Grade
Industrial
Wiring Style
Standard
Special Features
With Locking Cover
Material
Reinforced Nylon
Mounting Type
Flush Mount
Housing Material
Thermoplastic
NEMA Plug Configuration
L14-30P
Market
Industrial
Includes Mounting Hardware
Yes
Number of Blades
4
Shrouded
Yes
Blade Material
Brass
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
12, 4, 4X
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Maximum Surge Current
30 A
Contact Material
Brass
Weight
0.7 lb
Retainer Material
Clear Polycarbonate
Dielectric Strength
2000V
Screw Material
Stainless Steel
Flammability
UL 94 V0
NEMA Configuration
L14-30
NEMA Rating
12, 4, 4X
Amps
30
UL 94 Flammability Rating
V-0

Description

Locking Inlet, Current Rating 30 A, Housing Color Gray, IP Rating IP66, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Plug Configuration L14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Resistance Properties Impact Resistant, Watertight, Voltage Rating 125/250V AC, Wiring Style Standard, Flange Type Flanged, Grounding Grounded, Horsepower Rating 2 hp, Housing Material Thermoplastic, Includes Mounting Hardware Yes, Maximum Wire Size 8 AWG, Minimum Wire Size 16 AWG
