  9. Conduit Outlet Body, 7 Hub, 1 In.
Shop All Conduit Bodies & Covers
Appleton Electric

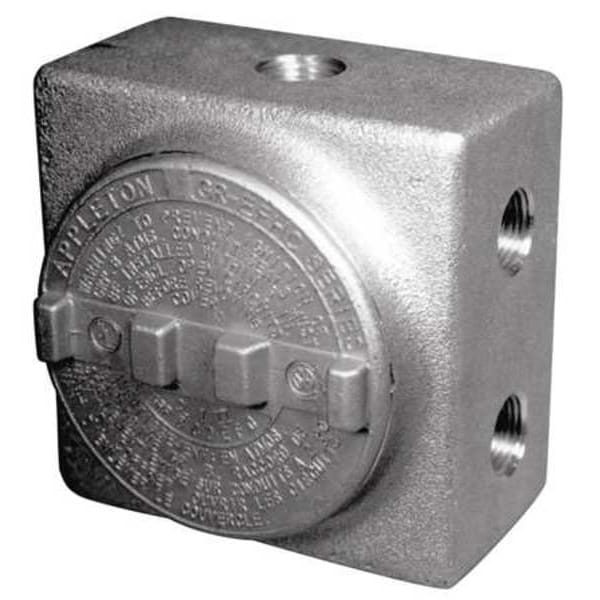

Conduit Outlet Body, 7 Hub, 1 In.

product price: $131.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Conduit Outlet Body Type Conduit Outlet Body
  • Hazardous Location Yes
  • Hub Size 1 in
  • Conduit Outlet Body Material Copper Free Aluminum
  • Conduit Outlet Body Style 7 Hub
See all product information

Product Information

Dimensions

Hub Size 1 in
Conduit Outlet Body Hub Size 1 in
Conduit Outlet Hub Size 1"
Overall Height 3 1/2 in
Thread Size 1 in
Compatible Conduit Trade Size 1 in
Overall Length 4 5/8 in
Trade Size 1 in

Details

Item Conduit Outlet Body
Conduit Outlet Body Type Conduit Outlet Body
Hazardous Location Yes
Conduit Outlet Body Material Copper Free Aluminum
Conduit Outlet Body Style 7 Hub
Material Aluminum
Conduit Outlet Body Capacity 29.0 cu in
Conduit Outlet Body Hub Style Threaded
For Use With Threaded IMC
Special Features 7 Hub. 2 On Each Side, 1 On Top and Bottom, 1 On Back
Color Gray
Back Type Flat
Standards CSA C22.2 No. 25, CSA C22.2 No. 30, UL 886, UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Form Form 1
Body Style 7 Hub
Hazardous Location Rating Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III
Finish Powder Coated
Compatible Cover GRK1
Hub Style Threaded
Body Capacity 29 cu in
Thread Type NPT
Gasket Included Yes
Connection Type Threaded
Compatible Conduit Type Threaded IMC
Number of Hubs 7
Series For Standard Body
Body Type Conduit Outlet Body
Connection Orientation Multi-Angle
Thread Gender Female
Cover Included Yes
NEC/CEC Certifications and Compliances Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
Standard Materials and Finishes Copperfree (4/10 of 1% max.) aluminum body and cover with epoxy powder coat

Description

Conduit Outlet Body, Overall Height 3 1/2 in, Overall Length 4 5/8 in, Trade Size 1 in, Compatible Conduit Trade Size 1 in, Hub Size 1 in, Compatible Cover GRK1, Aluminum, GRSS, Compatible Conduit Type Threaded IMC, Back Type Flat, Body Capacity 29 cu in, Body Style 7 Hub, Body Type Conduit Outlet Body, Color Gray, Connection Orientation Multi-Angle, Connection Type Threaded, Cover Included Yes, Finish Powder Coated, For Use With Threaded IMC, Gasket Included Yes, Hazardous Location Yes
