  8. /
  9. Conduit Outlet Body, T, 1/2 In.
Shop All Conduit Bodies & Covers
Appleton Electric

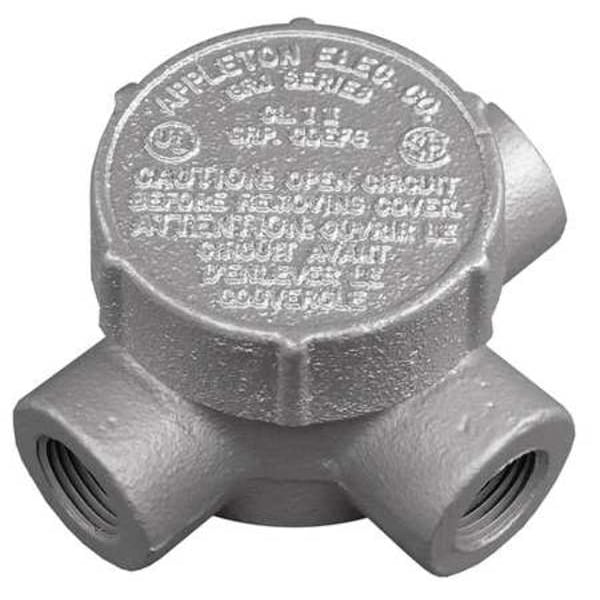

Conduit Outlet Body, T, 1/2 In.

product price: $65.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Conduit Outlet Body Type Conduit Outlet Body
  • Hazardous Location Yes
  • Hub Size 1/2 in
  • Conduit Outlet Body Material Iron
  • Conduit Outlet Body Style T
See all product information

Product Information

Dimensions

Hub Size 1/2 in
Conduit Outlet Body Hub Size 1/2 in
Conduit Outlet Hub Size 1/2"
Compatible Conduit Trade Size 1/2 in
Overall Width 2 7/16 in
Overall Length 3 7/8 in
Thread Size 1/2 in
Overall Height 2 7/8 in
Trade Size 1/2 in

Details

Conduit Outlet Body Type Conduit Outlet Body
Item Conduit Outlet Body
Hazardous Location Yes
Conduit Outlet Body Material Iron
Conduit Outlet Body Style T
Material Iron
Conduit Outlet Body Capacity 7.3 cu in
Conduit Outlet Body Hub Style Threaded
For Use With Threaded IMC
Color Gray
Back Type Round
Standards UL 886, UL Listed for Class I, Division 1 and 2, Groups C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Form Form 7
Body Style T
Number of Hubs 3
Cover Included Yes
Indoor/Outdoor Usage Indoor/Outdoor
Connection Type Threaded
Shape T
Thread Gender Female
Thread Type NPT
Body Capacity 7.3 cu in
Finish Triple Coat Epoxy Coating
Connection Orientation Multi-Angle
Hazardous Location Rating Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III
Compatible Cover GRJK-S, GRJK-SC
Compatible Conduit Type Threaded IMC
Series For Round Body
Hub Style Threaded
Body Type Conduit Outlet Body
Standard Materials and Finishes Malleable iron body with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; copperfree (4/10 of 1% max.) aluminum cover with epoxy powder coat
NEC/CEC Certifications and Compliances Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 4

Description

Conduit Outlet Body, Overall Width 2 7/16 in, Overall Height 2 7/8 in, Overall Length 3 7/8 in, Trade Size 1/2 in, Compatible Conduit Trade Size 1/2 in, Hub Size 1/2 in, Compatible Cover GRJK-S, GRJK-SC, Iron, GRJ, Compatible Conduit Type Threaded IMC, Indoor/Outdoor Usage Indoor/Outdoor, Back Type Round, Body Capacity 7.3 cu in, Body Style T, Body Type Conduit Outlet Body, Color Gray, Connection Orientation Multi-Angle, Connection Type Threaded, Cover Included Yes
