  8. Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum

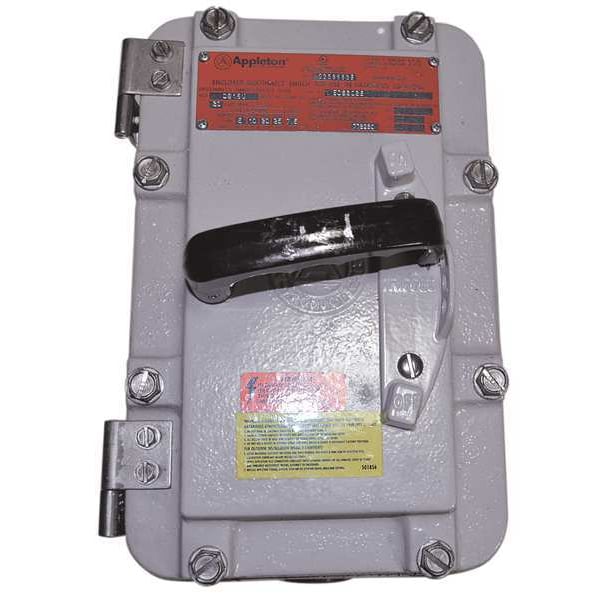

Appleton Electric Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum EDS3036 - main

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum

  • Mfr # EDS3036

  • Zoro # G4062116

product price:  $3,151.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EDS3036
Zoro #
G4062116
UPC #
-
Country of Origin
United States

Dimensions

Depth
6 1/2 in
Height
13 1/4 in
Width
8 1/4 in
Standard Conduit Size
1.5 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R, 4, 4X, 7, 9
HP
25 HP
Voltage
600 V
Housing Material
Aluminum
Standards
C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, UL 894, UL1203
Neutral Assembly
Included
Material
Copper Free Aluminum
Amps
30 A
Number of Wires
3 Wire, Accommodates Neutral
Number of Poles
3
Fusible / Nonfusible
Nonfusible
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Includes
Cutler Hammer Disconnect Switch
Duty
Heavy Duty
Material of Construction
Copper Free Aluminum
Series
EDS Series
Features
Top and Bottom Openings for Drainage, Covers have Stainless Steel Screws to Prevent "Freezing", Functions as Load Disconnect Switch or as Individual Motor Control Switch, Hinged, Removable Cover, Standard Insulated Neutral Lug Supplied, Removable Mounting Plate, Removable Reducer Bushing Furnished with Each Opening, Stainless Steel Shaft and Bushing within Rugged Handle, Self-Locating, Spring-Mounted Internal Handle Actuator, Top and Bottom Standard Feed-Thru Conduit Openings
Electrical Connection
Spring Terminal
Neutral Assembly Included
Yes
Horsepower @ 240V AC
10 hp
Horsepower @ 480V AC
20 hp
Horsepower @ 600V AC
25 hp
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 30 A, Depth 7 1/4 in, Duty Heavy Duty, Electrical Connection Spring Terminal, Enclosure Type Enclosed
