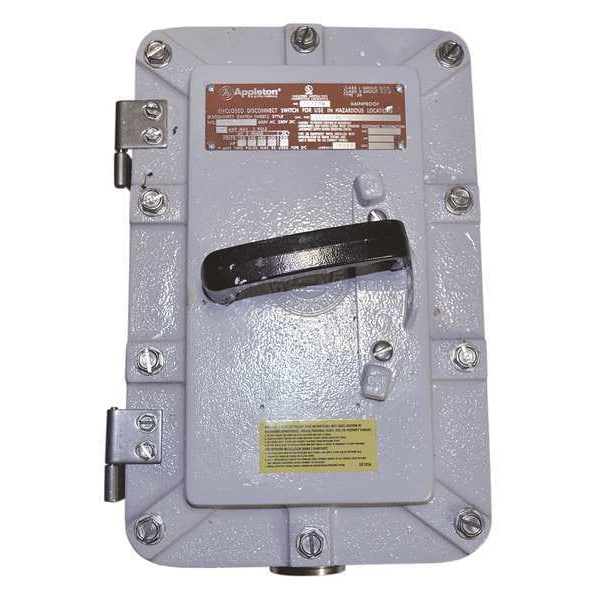

Appleton Electric Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum EDS6036 - main

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum

  • Mfr # EDS6036

  • Zoro # G4161622

product price:  $3,496.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EDS6036
Zoro #
G4161622
UPC #
-
Country of Origin
United States

Dimensions

Height
15 1/8 in
Depth
7 1/4 in
Width
9 5/8 in
Standard Conduit Size
2 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R, 4, 4X, 7, 9
HP
60 HP
Voltage
600 V
Housing Material
Aluminum
Standards
C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, UL 894, UL1203
Fusible / Nonfusible
Nonfusible
Material
Copper Free Aluminum
Neutral Assembly
Included
Includes
Cutler Hammer Disconnect Switch
Number of Poles
3
Amps
60 A
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Number of Wires
3 Wire, Accommodates Neutral
Material of Construction
Copper Free Aluminum
Duty
Heavy Duty
Series
EDS Series
Electrical Connection
Spring Terminal
Features
Top and Bottom Openings for Drainage, Covers have Stainless Steel Screws to Prevent "Freezing", Functions as Load Disconnect Switch or as Individual Motor Control Switch, Hinged, Removable Cover, Insulated Neutral Lug Supplied as Standard, Removable Mounting Plate, Removable Reducer Bushing Furnished with Each Opening, Stainless Steel Shaft and Bushing within Rugged Handle, Self-Locating, Spring-Mounted Internal Handle Actuator, Top and Bottom Standard Feed-Thru Conduit Openings
Neutral Assembly Included
Yes
Horsepower @ 480V AC
40 hp
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Horsepower @ 600V AC
60 hp
Horsepower @ 240V AC
20 hp

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 60 A, Depth 7 1/4 in, Duty Heavy Duty, Electrical Connection Spring Terminal, Enclosure Type Enclosed
