  8. Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor

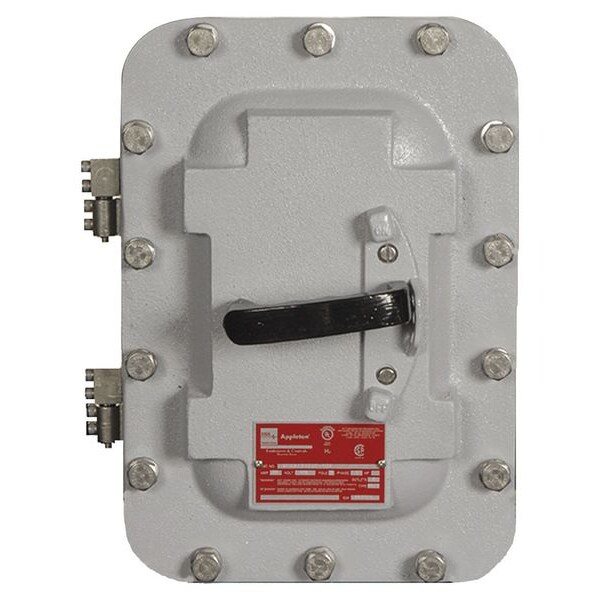

Appleton Electric Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor AEAB6036DS - main

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor

  • Mfr # AEAB6036DS

  • Zoro # G8341636

product price:  $4,196.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AEAB6036DS
Zoro #
G8341636
UPC #
-
Country of Origin
United States

Dimensions

Width
10 5/8 in
Depth
8 27/32 in
Height
15 1/4 in
Standard Conduit Size
2 in
Maximum Enclosure Depth
5.25 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4, 4X
HP
60 HP
Voltage
600 V
Housing Material
Aluminum
Standards
UL 1203
Number of Poles
3
Material
Copper Free Aluminum
Fusible / Nonfusible
Nonfusible
Number of Wires
3 Wire, Accommodates Neutral
Neutral Assembly
Included
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Amps
60 A
Material of Construction
Copper Free Aluminum
Duty
Heavy
Series
AE Series
Includes
Adder
Neutral Assembly Included
Yes
Electrical Connection
Bolt
Features
Bolt on Stainless Steel Slotted Mounting Feet, Disconnects Mounted on Galvanized Steel Removable Pan, External Flange, External Operating Handle with Stops, O-Ring Gasket, Plugged 1/2in Outlets on Top and Bottom for Breather and Drain, Flame Path Between Box and Cover, Stainless Steel Hinges, Standard Stainless Steel, Captive Quad-Lead(R) Cover Bolts, Standard Outlets Top and Bottom
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Horsepower @ 600V AC
60 hp
Horsepower @ 480V AC
40 hp
Number of Circuits Controlled
4
Horsepower @ 240V AC
20 hp
Maximum Operating Temperature
40 Degrees C
Number of Locks
3
Mounting Style
Surface

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 60 A, Depth 8 3/4 in, Duty Hazardous Location, Electrical Connection Bolt, Enclosure Type Enclosed, Environment Indoor/Outdoor
