  15. Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor

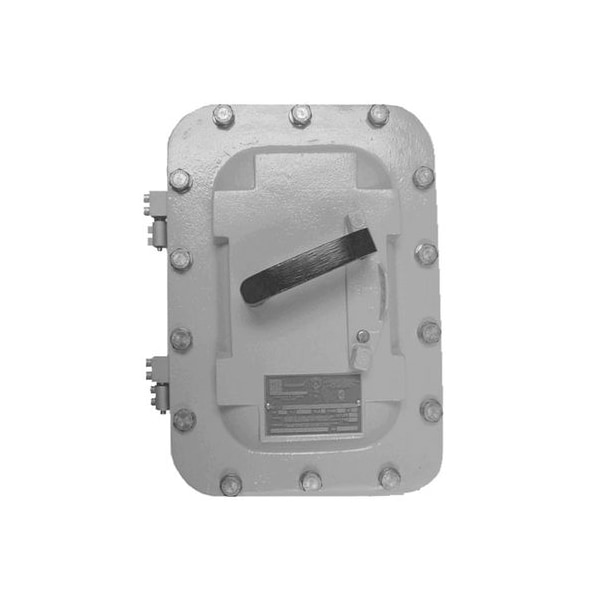

Appleton Electric Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor AEBB10036DS - main

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4, 4X, Indoor/Outdoor

  • Mfr # AEBB10036DS

  • Zoro # G8249656

product price: $5,761.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AEBB10036DS
Zoro #
G8249656
UPC #
-
Country of Origin
United States

Dimensions

Width
11 in
Depth
8 31/32 in
Height
20 1/2 in
Maximum Enclosure Depth
5.5 in
Standard Conduit Size
2.5 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4, 4X
HP
75 HP
Voltage
600 V
Housing Material
Aluminum
Standards
UL 1203
Number of Wires
3 Wire, Accommodates Neutral
Fusible / Nonfusible
Nonfusible
Amps
100 A
Material
Copper Free Aluminum
Neutral Assembly
Included
Number of Poles
3
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Material of Construction
Copper Free Aluminum
Series
AE Series
Duty
Heavy
Neutral Assembly Included
Yes
Electrical Connection
Bolt
Features
Bolt on Stainless Steel Slotted Mounting Feet, Disconnects Mounted on Galvanized Steel Removable Pan, External Flange, External Operating Handle with Stops, O-Ring Gasket, Plugged 1/2in Outlets on Top and Bottom for Breather and Drain, Flame Path Between Box and Cover, Stainless Steel Hinges, Standard Stainless Steel, Captive Quad-Lead(R) Cover Bolts, Standard Outlets Top and Bottom
Number of Circuits Controlled
4
Horsepower @ 480V AC
75 hp
Number of Locks
3
Horsepower @ 240V AC
30 hp
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Horsepower @ 600V AC
75 hp

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 100 A, Depth 9 in, Duty Hazardous Location, Electrical Connection Bolt, Enclosure Type Enclosed
