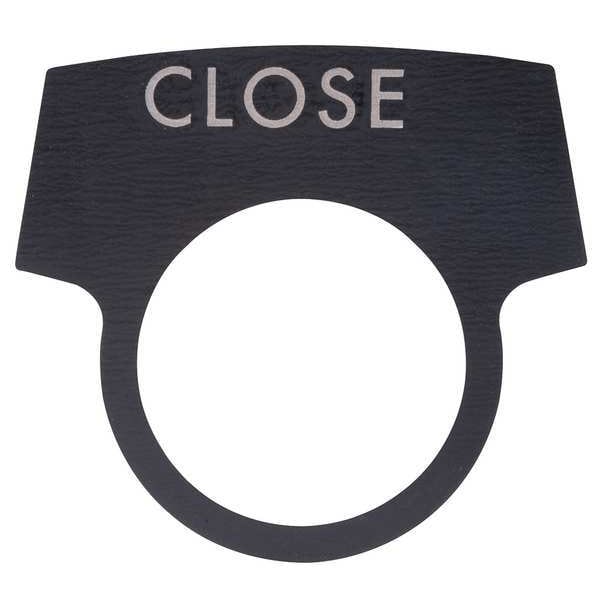

Legend Plate, Close, White/Black

Legend Plate

Aluminum

Black, White Letters

White/Black

Close

Half-Round

EFD and EFDB Control Stations

Legend Plate

30% glass-reinforced thermoplastic polyetherimide. Teflon coated stainless steel cover bolts and Mylar nameplates.

Stainless steel selector switch lockout, locks two or three position handle in any position. Securing rod for push button units. See catalog pages for details

Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel

Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)

Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block

Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. Alternate contacts available. See catalog pages for details

Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3R, 4X, 9EFG, 12

Class I, Division 1 and 2, Groups C, D; NEMA 3R, 4X, 7CD, 12

Pilot light jewel/guard assembly is available in amber, blue, clear, green and opal. LED jewel/guard assembly is available in red, amber and green. See catalog pages for details

Black

No Keyway

English

White
