Shop APPLETON ELECTRIC

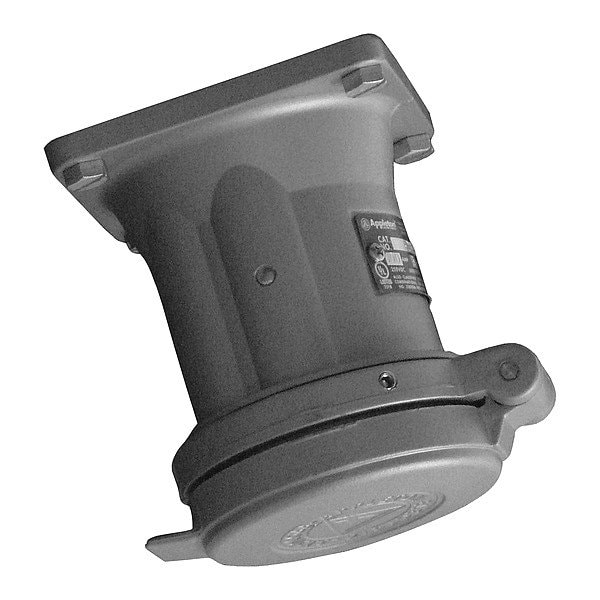

PinandSleeveRcptcl, 100A, 150hp, Gry, Alum

  • Mfr # ADR1044RS

  • Zoro # G422639083

product price:
$
611.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
250V DC, 600V AC
Phase
Three
Horsepower Rating
150 hp
Power Indicating Light
No
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ADR1044RS
Zoro #
G422639083
UPC #
781381711395
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.906 in
Maximum Wire Size
2/0 AWG
Minimum Wire Size
2 AWG
For Minimum Cable Diameter
0.875 in
Hub Diameter
2 in

Details

Voltage Rating
250V DC, 600V AC
Phase
Three
Horsepower Rating
150 hp
Power Indicating Light
No
Housing Material
Aluminum
Number of Wires
4
Current Rating
100 A
Number of Poles
4
Features
Features Widely Spaced Contacts Recessed Within an Internal Arc Snuffing Chamber Insulating Blocks and a Durable Neoprene Sealing Bushing
Minimum Operating Temperature
-13 Degrees F
Resistance Properties
Weather Resistant
Polarized
Yes
Grounding
Grounded
Standards
CSA, cULus, UL
Maximum Operating Temperature
104 Degrees F
Wire Connection Type
Screw Terminals
For Environment
Hazardous Location
Housing Color
Gray
IP Rating
Not Rated
NEMA Enclosure Rating
4X
GFCI
No
Number of Gangs
1
Flange Type
Flanged
Grounding Style
Style 1
Item
Pin and Sleeve Receptacle
Housing Material Finish
Epoxy Powder Coated
Insulation Material
Glass Filled Polyester
Reverse Service
Yes
Shrouded
Yes

Description

Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style Style 1, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 250V DC, 600V AC, Grounding Grounded, Horsepower Rating 150 hp, Housing Color Gray, Housing Material Aluminum, Maximum Wire Size 2/0 AWG, Minimum Wire Size 2 AWG, Power Indicating Light No
