Shop APPLETON ELECTRIC

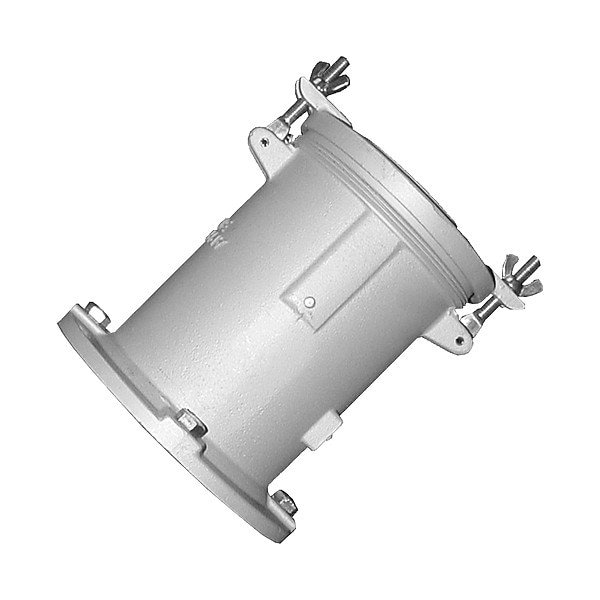

PinandSleeveRcptcl, 200A, 200hp, Gry, Alum

  • Mfr # AR20044

  • Zoro # G922639460

product price:  $1,414.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA, cULus, UL
Shrouded
Yes
Maximum Wire Size
1/0 AWG
Hub Diameter
2.5 in
For Maximum Cable Diameter
2.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AR20044
Zoro #
G922639460
UPC #
781381131575
Country of Origin
Mexico

Dimensions

Maximum Wire Size
1/0 AWG
Hub Diameter
2.5 in
For Maximum Cable Diameter
2.5 in
Minimum Wire Size
1/0 AWG
For Minimum Cable Diameter
0.875 in

Details

Standards
CSA, cULus, UL
Shrouded
Yes
Features
Features Widely Spaced Contacts Recessed Within an Internal Arc Snuffing Chamber Insulating Blocks and a Durable Neoprene Sealing Bushing
Grounding Style
Style 1
IP Rating
Not Rated
Horsepower Rating
200 hp
Item
Pin and Sleeve Receptacle
NEMA Enclosure Rating
3, 4, 4X
Minimum Operating Temperature
-13 Degrees F
GFCI
No
Voltage Rating
250V DC, 600V AC
Wire Connection Type
Screw Terminals
Phase
Three
Maximum Operating Temperature
104 Degrees F
Reverse Service
No
Number of Poles
4
Polarized
Yes
Resistance Properties
Weather Resistant
Number of Gangs
1
Number of Wires
4
Power Indicating Light
No
Insulation Material
Glass Filled Polyester
Housing Material
Aluminum
Grounding
Grounded
Flange Type
Flanged
For Environment
Hazardous Location
Housing Material Finish
Epoxy Powder Coated
Housing Color
Gray
Current Rating
200 A

Description

Pin and Sleeve Receptacle, Current Rating 200 A, Flange Type Flanged, Grounding Style Style 1, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 3, 4, 4X, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 250V DC, 600V AC, Grounding Grounded, Horsepower Rating 200 hp, Housing Color Gray, Housing Material Aluminum, Maximum Wire Size 1/0 AWG, Minimum Wire Size 1/0 AWG, Power Indicating Light No
