Shop APPLETON ELECTRIC

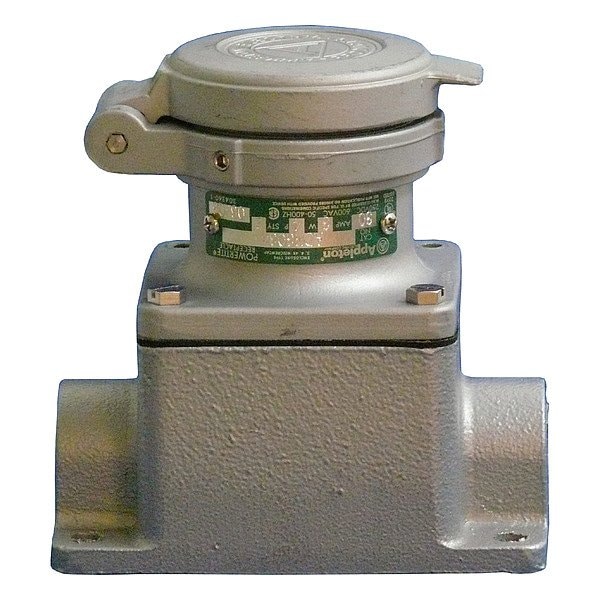

PinandSleeveReceptacle, 30A, 25hp, Gry, Alum

  • Mfr # ADR3034

  • Zoro # G322656302

product price:
$
368.99
/ea
Free Shipping & Returns

Key Features

Insulation Material
Glass Filled Polyester
Voltage Rating
250V DC, 600V AC
Shrouded
Yes
For Maximum Cable Diameter
1.125 in
Polarized
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ADR3034
Zoro #
G322656302
UPC #
781381186360
Country of Origin
Mexico
Insulation Material
Glass Filled Polyester
Voltage Rating
250V DC, 600V AC
Shrouded
Yes
Polarized
Yes
Grounding Style
Style 1
Horsepower Rating
25 hp
Housing Material Finish
Epoxy Powder Coated
NEMA Enclosure Rating
4X
Power Indicating Light
No
Resistance Properties
Weather Resistant
Wire Connection Type
Screw Terminals
Housing Material
Aluminum
IP Rating
Not Rated
Standards
CSA, cULus, UL
Housing Color
Gray
Features
Features Widely Spaced Contacts Recessed Within an Internal Arc Snuffing Chamber Insulating Blocks and a Durable Neoprene Sealing Bushing
Number of Poles
4
GFCI
No
Flange Type
Flanged
Minimum Operating Temperature
-13 Degrees F
Reverse Service
No
Number of Wires
3
Maximum Operating Temperature
104 Degrees F
Grounding
Grounded
Number of Gangs
1
Item
Pin and Sleeve Receptacle
For Environment
Hazardous Location
Phase
Three
Current Rating
30 A

Description

Pin and Sleeve Receptacle, Current Rating 30 A, Flange Type Flanged, Grounding Style Style 1, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 4, Number of Wires 3, Phase Three, Shrouded Yes, Voltage Rating 250V DC, 600V AC, Grounding Grounded, Horsepower Rating 25 hp, Housing Color Gray, Housing Material Aluminum, Maximum Wire Size 6 AWG, Minimum Wire Size 10 AWG, Power Indicating Light No
