Shop LEVITON

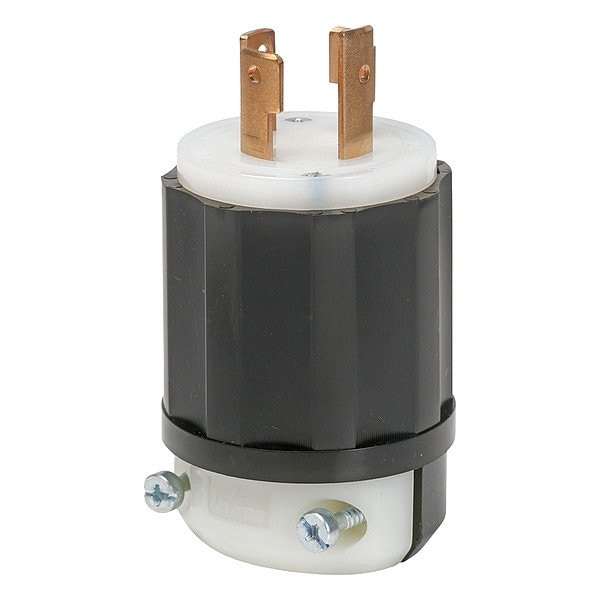

LockingPlug, 30A, 2hp, Black;White, Nylon

  • Mfr # 2711E

  • Zoro # G522728991

product price:
$
33.49
/ea

Key Features

Blade Material
Phosphor Bronze
For Maximum Cable Diameter
1.05 in
Resistance Properties
Impact Resistant
Wire Connection Type
Spring Clamp Terminals
Housing Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2711E
Zoro #
G522728991
UPC #
-
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.05 in
For Minimum Cable Diameter
0.56 in
Wire Rope Length
4.18 in
Overall Length
4.18 in
Length
4.18 in

Details

Blade Material
Phosphor Bronze
Resistance Properties
Impact Resistant
Wire Connection Type
Spring Clamp Terminals
Housing Material
Nylon
Item
Locking Plug
NEMA Plug Configuration
L14-30P
Series
Lever Edge(TM)
Midget Locking
No
Standards
ANSI C-73, C22.2 No. 42, CSA File No. E13393, UL 498, W-C-596, WD-6
Housing Color
Black, White
Current Rating
30 A
Maximum Operating Temperature
60 Degrees C
Features
Reliable Connection: Levers Reduce Risk of Loose Wire Termination, Secure: Lever Mechanism Provides a Strong, Secure Wire Connection, Time-Savings: Quick Wiring and Unwiring, User Safety: No Tool Required for Wire-Termination
Shrouded
No
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
2 hp
Power and Ground Indicating Light
No
Voltage Rating
125/250V AC
Grounding
Grounded
Number of Blades
4
Number of Poles
3
Grade
General Use
IP Rating
Not Rated
Phase
Single

Description

Locking Plug, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Resistance Properties Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.05 in, For Minimum Cable Diameter 0.56 in, Grade General Use, Grounding Grounded, Horsepower Rating 2 hp, IP Rating Not Rated, Midget Locking No, Shrouded No
