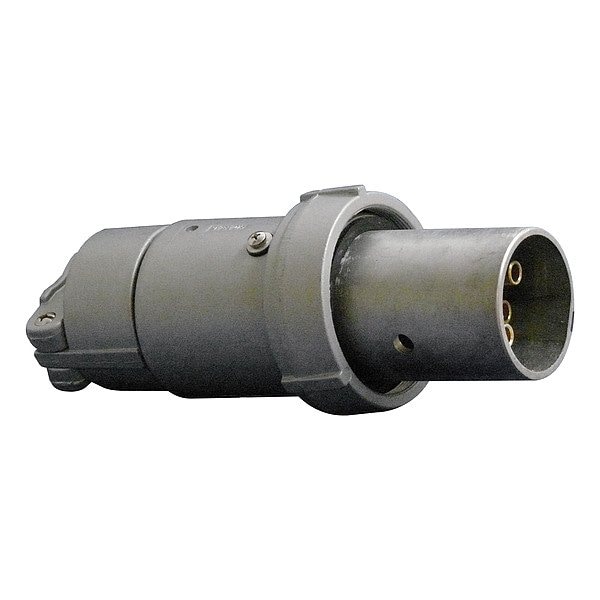

Shop APPLETON ELECTRIC

Plug

  • Mfr # ACP1044CD

  • Zoro # G222656570

product price:  $737.99
/ea
Free Shipping & Returns

Key Features

IP Rating
Not Rated
Horsepower Rating
100 hp
Voltage Rating
600V AC
Maximum Operating Temperature
104 Degrees F
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ACP1044CD
Zoro #
G222656570
UPC #
781381440172
Country of Origin
Mexico

Dimensions

For Minimum Cable Diameter
0.875 in
Wire Rope Length
10.56 in
Minimum Wire Size
4 AWG
For Maximum Cable Diameter
1.906 in
Maximum Wire Size
1 AWG
Outside Diameter
4.13 in
Overall Length
10.56 in

Details

IP Rating
Not Rated
Horsepower Rating
100 hp
Voltage Rating
600V AC
Maximum Operating Temperature
104 Degrees F
NEMA Enclosure Rating
4X
Housing Material
Aluminum
Grounding Style
Style 1
Housing Material Finish
Epoxy Powder Coated
Number of Wires
4
Insulation Material
Glass Filled Polyester
Minimum Operating Temperature
-13 Degrees F
Standards
CSA, cULus, UL
Resistance Properties
Weather Resistant
Number of Poles
4
Phase
Three
Features
These Units Offer Rough Usage Construction, a Wide Range of Amperage and Feature Widely Spaced Contacts Recessed within an Internal Arc Snuffing Chamber, Insulating Blocks and a Durable Neoprene Sealing Bushing
Item
Pin and Sleeve Plug
Series
Powertite(TM)
Wire Connection Type
Wire Leads
Reverse Service
No
Grounding
Grounded
Current Rating
100 A
For Environment
Hazardous Location
Housing Color
Gray
Power Indicating Light
No
Polarized
Yes

Description

Pin and Sleeve Plug, Current Rating 100 A, Hazardous Location Specification Not Applicable, Horsepower Rating 100 hp, Housing Color Gray, IP Rating Not Rated, Number of Poles 4, Number of Wires 4, Phase Three, Voltage Rating 600V AC, Wire Connection Type Wire Leads, For Maximum Cable Diameter 1.906 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Grounding Style Style 1, Housing Material Aluminum, Maximum Wire Size 1 AWG, Minimum Wire Size 4 AWG, NEMA Enclosure Rating 4X
