Shop HUBBELL WIRING DEVICE-KELLEMS

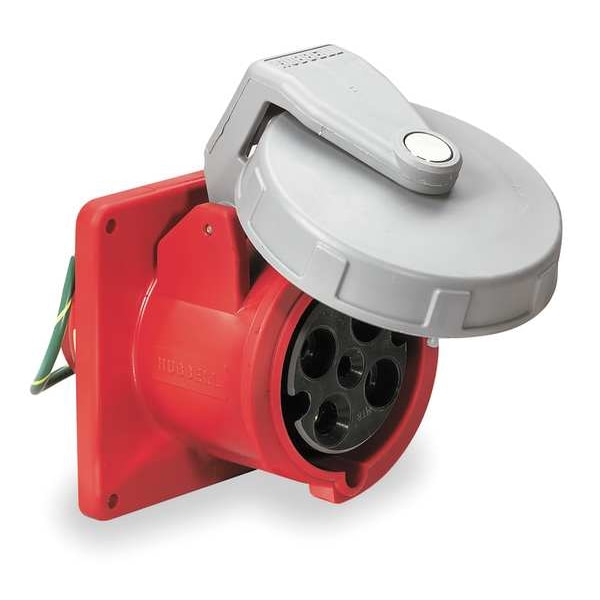

Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 4 Pole, IEC Grounding, Red, NEMA 4X

  • Mfr # HBL460R7W

  • Zoro # G2898104

product price:
$
471.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL460R7W
Zoro #
G2898104
UPC #
783585404912
Country of Origin
United States

Dimensions

Face Diameter
4.15 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Cord Size
8 to 2 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 101 Nylon
Body Material
Zytel 101 Nylon
Switch Rated
No
Features
Color Coded
Grounding Style
IEC
HP
10 hp
Number of Gangs
1
Power Indicating Light
No
Housing Material Grade
Zytel 101
Connection Orientation
Straight
Horsepower Rating
20 hp
Minimum Operating Temperature
-40 Degrees C
Reverse Service
No
Shrouded
Yes
Flange Type
Flanged
Housing Material
Thermoplastic
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Flammability
UL 94 HB or Better
Service
Standard
Screw Material
300 Stainless Steel
Flange Material
Zytel 101 Nylon
Temp. Rise
30°C
Gasket Material
Neoprene
Product Type
Watertight IEC Device
Weight
2.55 lb
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
Operating Temp.
-40 to 75°C
Grounding
Grounded
UL 94 Flammability Rating
HB

Description

The HUBBELL IEC Pin and Sleeve Receptacle is rated for 60 amps and 480V AC in three-phase systems. Constructed with a Zytel 101 nylon body and housing, this receptacle offers resistance to impact, moisture, and high temperatures. It features a flanged design with screw terminal wire connections suitable for wire sizes from 8 AWG to 2 AWG. The unit meets IP67 and NEMA 4X enclosure ratings, making it suitable for demanding environments where protection against water ingress is required.


Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 60A at 480V AC (three-phase)

  • Body/Housing Material: Zytel 101 nylon

  • Ingress Protection: IP67 rating; NEMA Enclosure Type 4X

  • Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG

  • Operating Temperature Range: -40°C to +75°C

  • Number of Poles/Wires: Four poles, five wires configuration

  • Connection Orientation: Straight; screw terminal connection type

  • Flange/Gasket Materials: Flanged design with neoprene gasket for watertight sealing

  • Resistance Properties: Constructed from materials rated as impact resistant, moisture resistant, watertight per applicable standards
