Shop APPLETON ELECTRIC

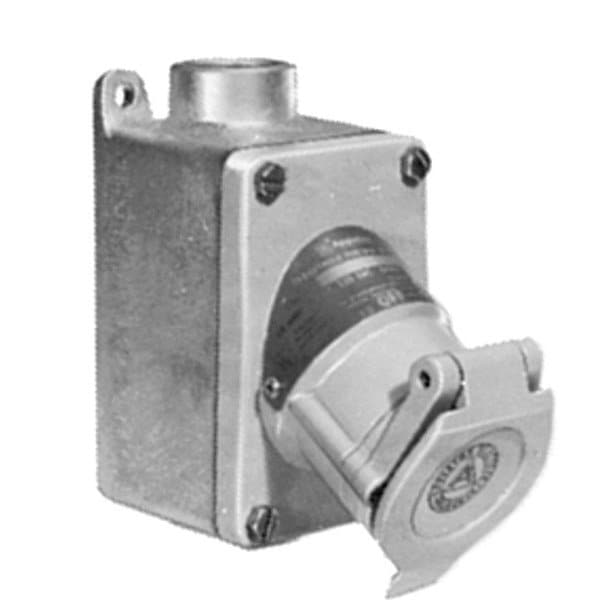

Receptacle, 20A, 125VAC, Gray, Aluminum

  • Mfr # EFSC1752023

  • Zoro # G222705520

product price:
$
574.99
/ea
Free Shipping & Returns

Key Features

Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
3, 3R, 3RX, 4X, 7BCD, 9FG
Standards
CSA, UL
Series
U-Line(TM)
AFCI
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFSC1752023
Zoro #
G222705520
UPC #
781381284004
Country of Origin
Mexico

Dimensions

Flange Height
6.5 in
Mount Hole Center-to-Center Height
5.6 in
Mount Hole Center-to-Center Width
2.8 in
Overall Depth
5.6 in

Details

Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
3, 3R, 3RX, 4X, 7BCD, 9FG
Standards
CSA, UL
Series
U-Line(TM)
Item
Receptacle
AFCI
No
Housing Color
Gray
Voltage Rating
125V AC
Contact Material
Brass
Grade
Marine
Number of Poles
3
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G
Number of Gangs
1
GFCI
Yes
Current Rating
20 A
Housing Material
Aluminum
Number of Wires
2
Grounding
Grounded
Features
Appleton(TM) U-Line(TM) 20 a Factory Sealed Plugs and Receptacles are Ideal for use in Damp or Corrosive Conditions where Receptacles are Used with Stationary or Portable Electrically Operated Devices, The ECP Plug is Suitable for use in such Areas where Ignitable Gases are Present, The Insulators Provide Superior Dielectric and Mechanical Strength and Lowest Arc Tracking, The NCP Plug is Ideal where Moisture or Corrosion is a Constant Problem, These Explosionproof, Dust-Ignition proof Receptacles offer a Dead Front Design, Ensuring it is not Energized Until Plug is Fully Inserted and the Switch is Engaged
Hub Type
Feed Through
Horsepower Rating
1 hp

Description

Receptacle, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Housing Color Gray, Housing Material Aluminum, NEMA Enclosure Rating 3, 3R, 3RX, 4X, 7BCD, 9FG, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Resistance Properties Corrosion Resistant, Standards CSA, UL, Voltage Rating 125V AC, AFCI No, Horsepower Rating 1 hp, IP Rating Not Applicable
