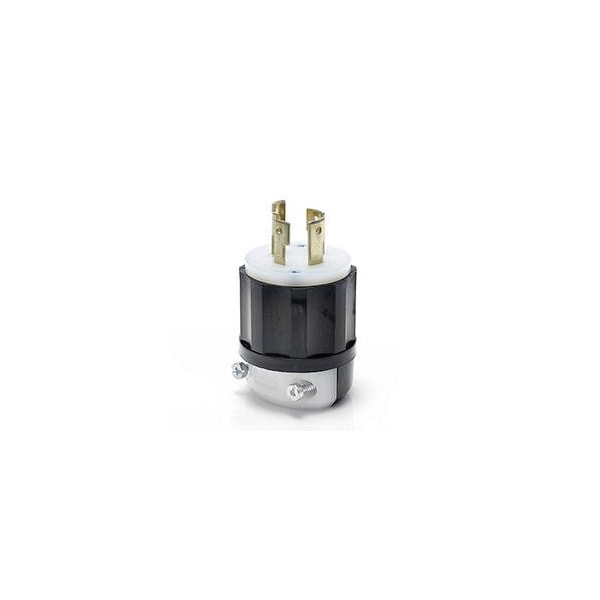

Leviton Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White 2721 - main

Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 2721

  • Zoro # G616525338

product price:  $37.19
/ea

Key Features

NEMA Plug Configuration
L15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2721
Zoro #
G616525338
UPC #
07847780837
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.05 in
Maximum Wire Size
8 AWG
Cord Size
0.56 in to 1.05 in
Face Diameter
1.97 in
Minimum Wire Size
14 AWG
Body Length
2.7 in
Outside Diameter
2.23 in
For Minimum Cable Diameter
0.56 in

Details

Item
Locking Plug
NEMA Plug Configuration
L15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Minimum Operating Temperature
-40 Degrees C
Material
Impact Modified Nylon
Housing Material
Nylon
IP Rating
Not Rated
Midget Locking
No
Special Features
Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Horsepower Rating
3 hp
Maximum Operating Temperature
140 Degrees F
Blade Material
Brass
For Environment
Dry
Grade
Federal Specification
Market
Industrial
Polarized
Yes

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L15-30P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 1.05 in, For Minimum Cable Diameter 0.56 in, Grade Federal Specification, Grounding Grounded
