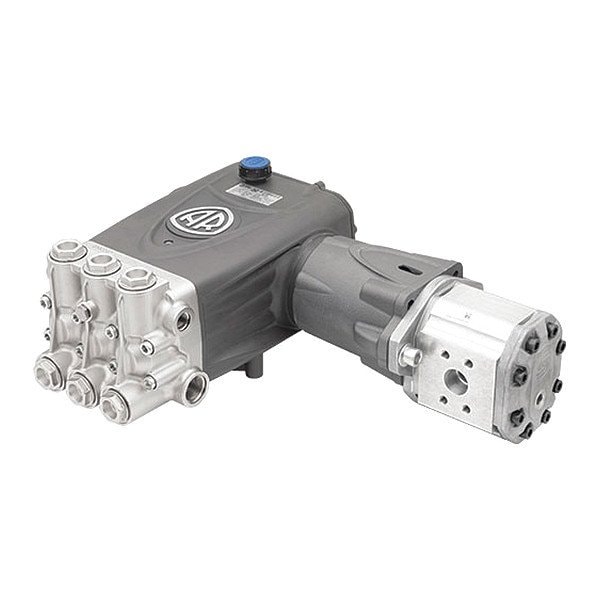

PressPlngPmp, 3, 18.5 gpm, 1", RTX Series

  • Mfr # HYD-RTX70
  • Zoro # G9753567

product price:
$
3,360.99
/ea
Free Shipping & Returns

Key Features

Manifold Material
Forged Brass
Series
RTX Series
Pumping Element Layout
Inline
Inlet Diameter
1 in
Flow Rate (Maximum)
18.5 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HYD-RTX70
Zoro #
G9753567
UPC #
192216944466
Country of Origin
Italy
Item
Pressure Plunger Pump
Manifold Material
Forged Brass
Series
RTX Series
Pumping Element Layout
Inline
Flow Rate (Maximum)
18.5 gpm
Drive Shaft Connection Type
Keyed
Hydraulic Motor Pressure - Maximum
2,610 psi
Connecting Rod Material
Zinc-Aluminum
Engine Shaft Orientation
Horizontal
Hydraulic Motor Mounting Flange Type
SAE B
Pump Head Material
Forged Brass
Hydraulic Motor Mounting Bolt Pattern
2-Bolt or 4-Bolt
Required Electric Motor Horsepower (Maximum)
33 4/5 hp
Rated Speed
1,450 RPM
Shaft Seal Material
Buna-N
Shaft Type
Hollow
Required Gasoline Engine Horsepower (Maximum)
52 7/10 hp
Media Temperature - Maximum
140 Degrees F
Lubrication
Oil Bath
Plunger Material
Ceramic
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Pump Drive Configuration
Hydraulic-Driven
Motor Speed (Maximum)
1,450 RPM
Number of Plungers
3
Discharge Pressure (Maximum)
3,000 psi
Hydraulic Motor Flow Rate - Maximum
18.5 gpm
Compatible Drive Method
Hydraulic Drive
Power Source
Hydraulic Motor
Operating Pressure (Maximum)
2,200 psi

Dimensions

Inlet Diameter
1 in
Discharge Diameter
1/2 in
Shaft Outer Diameter
7/8 in

Description

Pressure Plunger Pump, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 3,000 psi, Flow Rate (Maximum) 18.5 gpm, Intake Connection Size 1 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,450 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 33 4/5 hp, Required Gasoline Engine Horsepower (Maximum) 52 7/10 hp, Lubrication Oil Bath, Shaft Outer Diameter 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
