Shop A.R. NORTH AMERICA

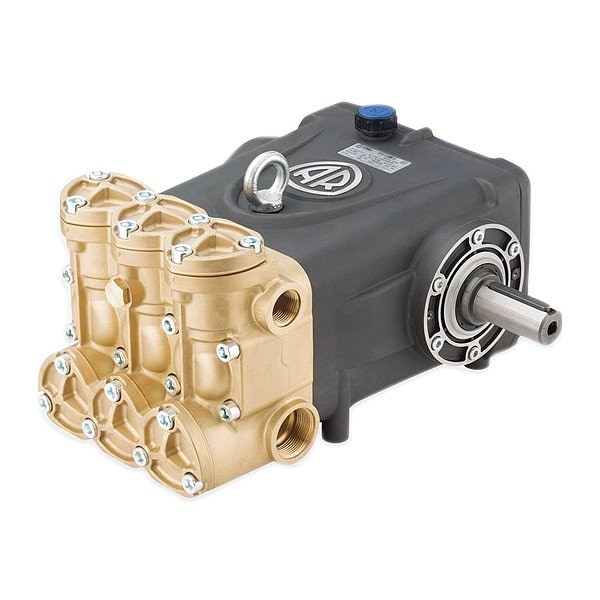

Pressure Plunger Pump, 1 1/2 in, Forged Brass, 2,000 psi

  • Mfr # RTD160-130

  • Zoro # G210474513

product price:  $4,245.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Lubrication
Oil Bath
Piston Design
Triplex
Discharge Pressure (Maximum)
2,000 psi
Drive Type
Belt-Drive
Shaft Outer Diameter
35 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RTD160-130
Zoro #
G210474513
UPC #
192216261044
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
35 mm
Discharge Connection Size
1 in
Intake Connection Size
1 1/2 in
Discharge Diameter
1 in
Inlet Diameter
1 1/2 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Piston Design
Triplex
Discharge Pressure (Maximum)
2,000 psi
Drive Type
Belt-Drive
Motor Speed (Maximum)
1,000 RPM
Bearing Type
Tapered Roller
Flange Type
Horizontal Gas Engine
Number of Pistons
3
Operating Pressure (Maximum)
2,000 psi
Discharge Connection Type
NPT
Shaft Type
Solid
Intake Connection Type
FNPT
Connecting Rod Material
Bronze
Required Electric Motor Horsepower (Maximum)
54 4/5 hp
Plunger Material
Ceramic
Power Source
Hydraulic Motor
Pump Head Material
Forged Brass
Required Gasoline Engine Horsepower (Maximum)
85 1/2 hp
Flow Rate (Maximum)
40 gpm
Crankcase Material
Die Cast Aluminum
Media Temperature - Maximum
140 Degrees F
Rated Speed
1,000 RPM
Pumping Element Layout
Inline
Pump Drive Configuration
Hydraulic-Driven
Drive Shaft Connection Type
Keyed
Engine Shaft Orientation
Horizontal
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Shaft Seal Material
Buna-N
Number of Plungers
3
Manifold Material
Forged Brass
Series
RTD Series
Power Source - TS Only
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 2,000 psi, Flow Rate (Maximum) 40 gpm, Intake Connection Size 1 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,000 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 54 4/5 hp, Required Gasoline Engine Horsepower (Maximum) 85 1/2 hp, Lubrication Oil Bath, Shaft Outer Diameter 35 mm
