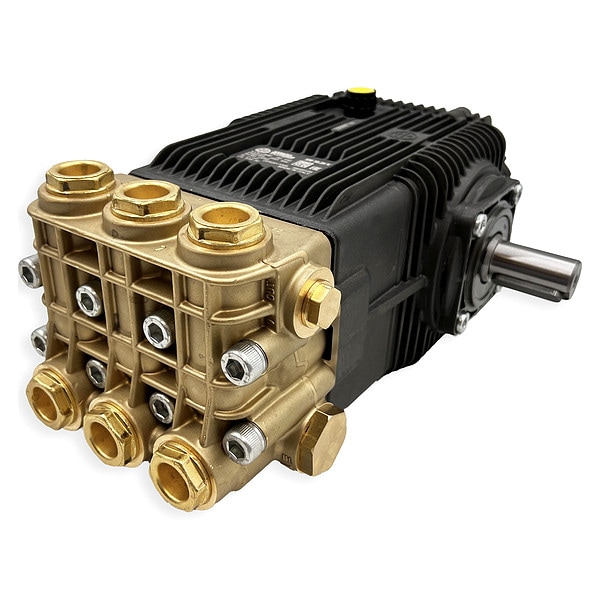

Pressure Plunger Pump, 15/16 in, 3, 3/4 in

  • Mfr # XWAM8G35N-PKG

  • Zoro # G410474504

product price:  $933.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Intake Connection Size
3/4 in
Operating Pressure (Maximum)
3,500 psi
Required Gasoline Engine Horsepower (Maximum)
30 hp
Number of Pistons
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XWAM8G35N-PKG
Zoro #
G410474504
UPC #
192216218604
Country of Origin
Italy

Dimensions

Intake Connection Size
3/4 in
Discharge Connection Size
3/8 in
Shaft Outer Diameter
24 mm
Discharge Diameter
3/8 in
Inlet Diameter
3/4 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Operating Pressure (Maximum)
3,500 psi
Required Gasoline Engine Horsepower (Maximum)
30 hp
Number of Pistons
3
Piston Design
Triplex
Flange Type
Horizontal Gas Engine
Flow Rate (Maximum)
8 gpm
Discharge Pressure (Maximum)
3,500 psi
Motor Speed (Maximum)
1,750 RPM
Drive Type
Belt-Drive
Required Electric Motor Horsepower (Maximum)
19 1/5 hp
Shaft Type
Solid
Intake Connection Type
FNPT
Pump Head Material
Forged Brass
Discharge Connection Type
NPT
Power Source
Hydraulic Motor
Plunger Material
Ceramic
Pump Drive Configuration
Hydraulic-Driven
Drive Shaft Connection Type
Keyed
Shaft Seal Material
Buna-N
Rated Speed
1,750 RPM
Series
XW Series
Pumping Element Layout
Inline
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Engine Shaft Orientation
Horizontal
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Connecting Rod Material
Zinc-Aluminum
Media Temperature - Maximum
140 Degrees F
Number of Plungers
3
Manifold Material
Forged Brass
Power Source - TS Only
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 3,500 psi, Flow Rate (Maximum) 8 gpm, Intake Connection Size 3/4 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 19 1/5 hp, Required Gasoline Engine Horsepower (Maximum) 30 hp, Lubrication Oil Bath, Shaft Outer Diameter 24 mm
