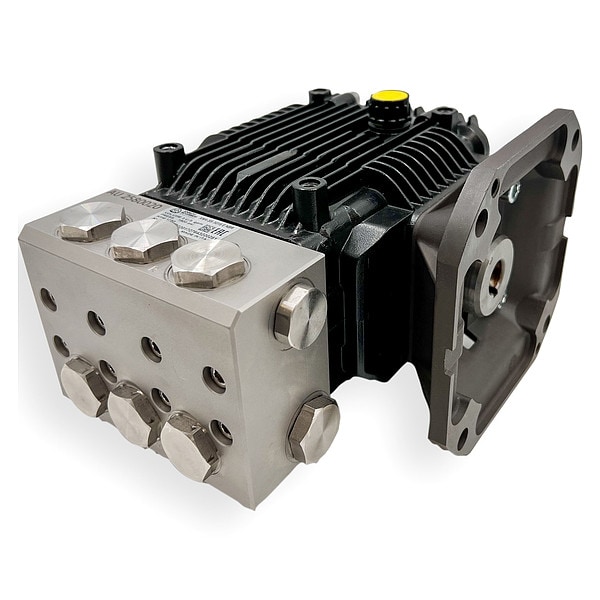

Pressure Plunger Pump, 3/8 in, Hollow, 1,500 psi

  • Mfr # XMASS3G15E-F33-PKG

  • Zoro # G410474498

product price:  $1,749.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Discharge Pressure (Maximum)
1,500 psi
Shaft Type
Hollow
Intake Connection Type
FNPT
Drive Type
Direct-Mount
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XMASS3G15E-F33-PKG
Zoro #
G410474498
UPC #
192216219526
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
5/8 in
Discharge Connection Size
3/8 in
Intake Connection Size
1/2 in
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in
For Electric Motor Frame Size
56C

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Discharge Pressure (Maximum)
1,500 psi
Shaft Type
Hollow
Intake Connection Type
FNPT
Drive Type
Direct-Mount
Plunger Material
Ceramic
Piston Design
Triplex
Flow Rate (Maximum)
3 gpm
Required Electric Motor Horsepower (Maximum)
3 1/10 hp
Discharge Connection Type
NPT
Power Source
Electric Motor
Flange Type
Horizontal Gas Engine
Number of Pistons
3
Motor Speed (Maximum)
1,750 RPM
Required Gasoline Engine Horsepower (Maximum)
4 4/5 hp
Operating Pressure (Maximum)
2,000 psi
Pump Head Material
316 Stainless Steel
Number of Plungers
3
Engine Shaft Orientation
Horizontal
Rated Speed
1,750 RPM
Drive Shaft Connection Type
Keyed
Pumping Element Layout
Inline
Series
XM Series
Manifold Material
316 Stainless Steel
Media Temperature - Maximum
140 Degrees F
Connecting Rod Material
Zinc-Aluminum
Shaft Seal Material
FKM
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Power Source - TS Only
Electric Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 1,500 psi, Flow Rate (Maximum) 3 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material 316 Stainless Steel, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 3 1/10 hp, Required Gasoline Engine Horsepower (Maximum) 4 4/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 5/8 in
