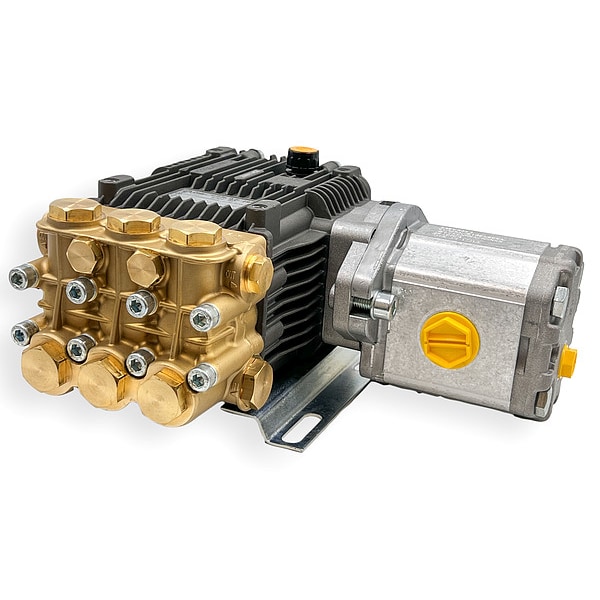

Pressure Plunger Pump, Forged Brass, Horizontal Hydraulic Drive, 4 gpm

  • Mfr # HYD-RK1520-PKG

  • Zoro # G210474483

product price:  $1,064.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Discharge Pressure (Maximum)
3,000 psi
Shaft Type
Hollow
Pump Head Material
Forged Brass
Plunger Material
Ceramic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HYD-RK1520-PKG
Zoro #
G210474483
UPC #
192216228252
Country of Origin
Italy

Dimensions

Discharge Connection Size
3/8 in
Intake Connection Size
1/2 in
Shaft Outer Diameter
5/8 in
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Discharge Pressure (Maximum)
3,000 psi
Shaft Type
Hollow
Pump Head Material
Forged Brass
Plunger Material
Ceramic
Motor Speed (Maximum)
1,450 RPM
Power Source
Hydraulic Motor
Drive Type
Hydraulic
Flow Rate (Maximum)
4 gpm
Number of Pistons
3
Required Gasoline Engine Horsepower (Maximum)
12 4/5 hp
Operating Pressure (Maximum)
3,000 psi
Discharge Connection Type
NPT
Flange Type
Horizontal Hydraulic Drive
Required Electric Motor Horsepower (Maximum)
8 1/5 hp
Intake Connection Type
FNPT
Piston Design
Triplex
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Hydraulic Motor Flow Rate - Maximum
7.5 gpm
Manifold Material
Forged Brass
Number of Plungers
3
Hydraulic Motor Pressure - Maximum
2,500 psi
Drive Shaft Connection Type
Keyed
Hydraulic Motor Mounting Flange Type
SAE A
Connecting Rod Material
Zinc-Aluminum
Compatible Drive Method
Hydraulic Drive
Series
RK Series
Rated Speed
1,450 RPM
Media Temperature - Maximum
140 Degrees F
Hydraulic Motor Mounting Bolt Pattern
2-Bolt
Engine Shaft Orientation
Horizontal
Pump Drive Configuration
Hydraulic-Driven
Shaft Seal Material
Buna-N
Pumping Element Layout
Inline
Power Source - TS Only
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 3,000 psi, Flow Rate (Maximum) 4 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,450 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 8 1/5 hp, Required Gasoline Engine Horsepower (Maximum) 12 4/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 5/8 in
