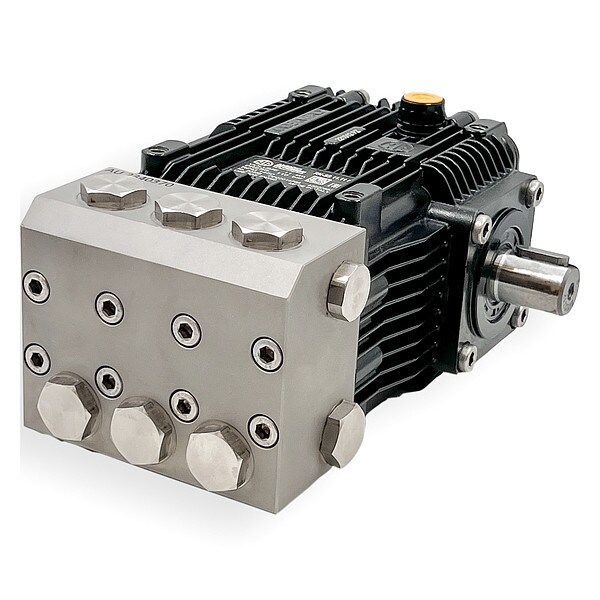

Pressure Plunger Pump, Oil Bath, 5 7/10 hp, 4.2 gpm

  • Mfr # RKASS4.2G15N-PKG

  • Zoro # G510474503

product price:  $1,831.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Discharge Pressure (Maximum)
1,500 psi
Flow Rate (Maximum)
4.2 gpm
Discharge Connection Type
NPT
Pump Head Material
316 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RKASS4.2G15N-PKG
Zoro #
G510474503
UPC #
192216209671
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
15/16 in
Intake Connection Size
1/2 in
Discharge Connection Size
3/8 in
Discharge Diameter
3/8 in
Inlet Diameter
1/2 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Discharge Pressure (Maximum)
1,500 psi
Flow Rate (Maximum)
4.2 gpm
Discharge Connection Type
NPT
Pump Head Material
316 Stainless Steel
Required Electric Motor Horsepower (Maximum)
4 3/10 hp
Operating Pressure (Maximum)
3,000 psi
Number of Pistons
3
Motor Speed (Maximum)
1,750 RPM
Flange Type
Horizontal Gas Engine
Required Gasoline Engine Horsepower (Maximum)
6 7/10 hp
Drive Type
Belt-Drive
Plunger Material
Ceramic
Shaft Type
Solid
Power Source
Hydraulic Motor
Piston Design
Triplex
Intake Connection Type
FNPT
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Pumping Element Layout
Inline
Media Temperature - Maximum
140 Degrees F
Number of Plungers
3
Rated Speed
1,750 RPM
Engine Shaft Orientation
Horizontal
Manifold Material
316 Stainless Steel
Series
RK Series
Pump Drive Configuration
Hydraulic-Driven
Shaft Seal Material
FKM
Drive Shaft Connection Type
Keyed
Connecting Rod Material
Zinc-Aluminum
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Power Source - TS Only
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 1,500 psi, Flow Rate (Maximum) 4.2 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material 316 Stainless Steel, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 4 3/10 hp, Required Gasoline Engine Horsepower (Maximum) 6 7/10 hp, Lubrication Oil Bath
