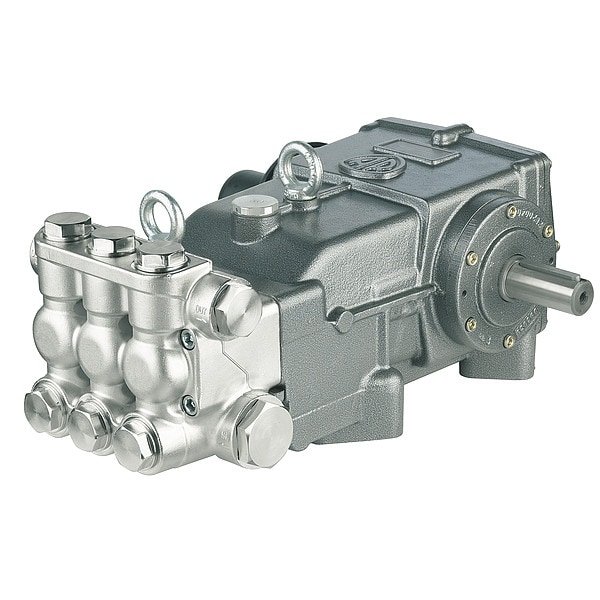

Pressure Washer Pump, 18 GPM, 1 1/2F x 1F

  • Mfr # RTJ70N
  • Zoro # G3360366
product price:
$
5,967.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Type
Belt-Drive
Flow Capacity (GPM)
18 gpm
RPM
1,000 RPM
Shaft Dia.
35 mm
Inlet Port (In.)
1-1/2 F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RTJ70N
Zoro #
G3360366
UPC #
-
Country of Origin
Italy

Dimensions

Shaft Dia.
35 mm
Length (In.)
22.1 in
Height (In.)
9.1 in
Width (In.)
18.1 in
Discharge Connection Size
1 in
Intake Connection Size
1 1/2 in
Shaft Outer Diameter
35 mm
Overall Height
9.1 in
Overall Width
18.1 in
Overall Length
22.1 in
Discharge Diameter
1 in
Inlet Diameter
1 1/2 in
Wire Rope Length
22.1 in
Length
22.1 in

Details

Item
Pressure Plunger Pump
Type
Belt-Drive
Flow Capacity (GPM)
18 gpm
RPM
1,000 RPM
Inlet Port (In.)
1-1/2 F
HP Required @ 1000 PSI
12.4 hp
Manifold Material
Forged Brass
HP Required @ 2500 PSI
30.9 hp
HP Required @ 1500 PSI
18.5 hp
Discharge Port (In.)
1 Degrees F
Plunger
Ceramic
Connecting Rod
Bronze
Lubrication
Oil Bath
Driver Type
Electric Motor or Gasoline Engine
Pump Head
Forged Brass
HP Required @ 2000 PSI
24.7 hp
Bearings
Roller
HP Required @ 4000 PSI
49.4 hp
Max. Inlet Pressure (PSI)
50 psi
Crankshaft
Hardened Steel
Discharge Pressure (PSI)
4,000 psi
Max. Fluid Temp. (F)
140
HP Required @ 3500 PSI
43.2 hp
HP Required @ 500 PSI
6.2 hp
Seal
W-1 & W-2
Crankcase
Cast Iron
HP Required @ 3000 PSI
37.1 hp
Application
High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting
Connecting Rod Material
Zinc-Aluminum
Pump Head Material
Forged Brass
Number of Pistons
3
Operating Pressure (Maximum)
4,000 psi
Crankshaft Material
Hardened Steel
Flow Rate (Maximum)
18.5 gpm
Flow Rate (Minimum)
1.85 gpm
Media Temperature (Maximum)
140 Degrees F
Motor Speed (Maximum)
1,000 RPM
Discharge Pressure (Maximum)
4,000 psi
Discharge Connection Type
BSP
Crankcase Material
Cast Iron
Required Gasoline Engine Horsepower (Maximum)
79 1/5 hp
Seal Type
Mechanical Type 1, Mechanical Type 2
Flange Type
Horizontal Plunger Pump
Bearing Type
Roller
Required Electric Motor Horsepower (Maximum)
50 4/5 hp
Drive Type
Belt-Drive
Intake Connection Type
BSP
Shaft Type
Solid
Piston Design
Triplex
Plunger Material
Ceramic
Rated Speed
1,000 RPM
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Shaft Seal Material
Buna-N
Engine Shaft Orientation
Horizontal
Power Source
Hydraulic Motor
Shaft Seal Type
Lip
Pump Drive Configuration
Hydraulic-Driven
Media Temperature - Maximum
140 Degrees F
Drive Shaft Connection Type
Keyed
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Number of Plungers
3
Pumping Element Layout
Inline
Series
RTJ Series
Power Source - TS Only
Hydraulic Motor
Power Source - old
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 1 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 4,000 psi, Flow Rate (Maximum) 18.5 gpm, Intake Connection Size 1 1/2 in, Intake Connection Type BSP, Motor Speed (Maximum) 1,000 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 50 4/5 hp, Required Gasoline Engine Horsepower (Maximum) 79 1/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 35 mm
