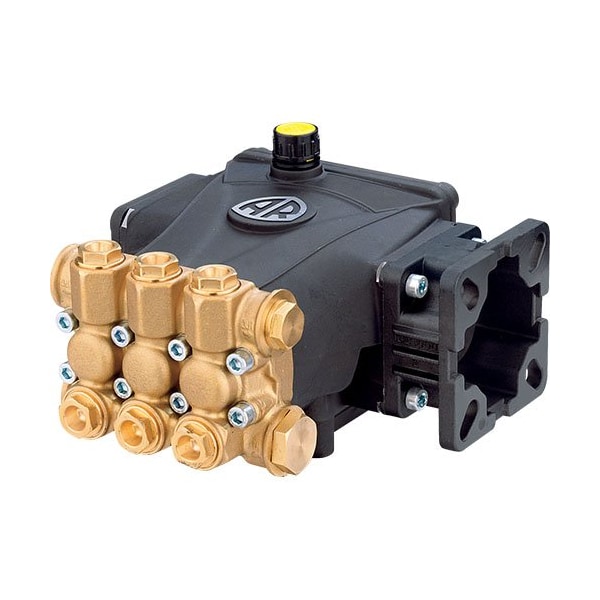

Pump

  • Mfr # RCV3G27D-F7

  • Zoro # G410953757

product price:  $378.99
/ea
Free Shipping & Returns

Key Features

Operating Pressure (Maximum)
2,700 psi
Flow Rate (Maximum)
3 gpm
Motor Speed (Maximum)
3,400 RPM
Pumping Element Layout
Inline
Drive Shaft Connection Type
Keyed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
RCV3G27D-F7
Zoro #
G410953757
UPC #
192216251397
Country of Origin
Italy

Dimensions

Discharge Diameter
3/8 in
Shaft Outer Diameter
3/4 in
Inlet Diameter
1/2 in

Details

Item
Pressure Plunger Pump
Operating Pressure (Maximum)
2,700 psi
Flow Rate (Maximum)
3 gpm
Motor Speed (Maximum)
3,400 RPM
Pumping Element Layout
Inline
Drive Shaft Connection Type
Keyed
Engine Shaft Orientation
Horizontal
Rated Speed
3,400 RPM
Manifold Material
Forged Brass
Discharge Pressure (Maximum)
2,700 psi
Pump Head Material
Forged Brass
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Shaft Seal Material
Buna-N
Lubrication
Oil Bath
Engine Mounting Flange Type
SAE J609
Connecting Rod Material
Zinc-Aluminum
Number of Plungers
3
Required Gasoline Engine Horsepower (Maximum)
8 7/10 hp
Power Source
Gasoline Engine
Media Temperature - Maximum
140 Degrees F
Series
RC Series
Shaft Type
Hollow
Plunger Material
Ceramic
Required Electric Motor Horsepower (Maximum)
5 3/5 hp
Power Source - TS Only
Gasoline Engine

Description

Pressure Plunger Pump, Discharge Pressure (Maximum) 2,700 psi, Flow Rate (Maximum) 3 gpm, Motor Speed (Maximum) 3,400 RPM, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 5 3/5 hp, Required Gasoline Engine Horsepower (Maximum) 8 7/10 hp, Lubrication Oil Bath, Shaft Outer Diameter 3/4 in, Shaft Type Hollow, Operating Pressure (Maximum) 2,700 psi, Power Source Gasoline Engine, Connecting Rod Material Zinc-Aluminum
