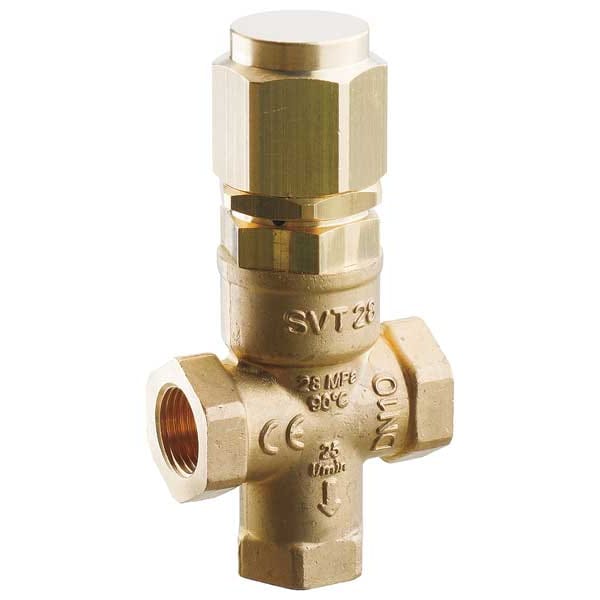

Regulating Valve, 3/8 In, 0 to 6.3 GPM
Mfr # AL703
Zoro # G3157393
product price: $57.99
/eaKey Features
Body Material
Brass
Max. Fluid Temp. (F)
194 Degrees F
Max. Pressure (PSI)
4,060 psi
Max. Flow GPM
6
Application
Water and Nonflammable Liquids
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AL703
Zoro #
G3157393
UPC #
-
Country of Origin
Italy
Dimensions
Height (In.)
4 3/8 in
Overall Height
4 3/8 in
Outlet Connection Size
3/8 in
Details
Body Material
Brass
Item
Pressure Relief Valve
Max. Fluid Temp. (F)
194 Degrees F
Max. Pressure (PSI)
4,060 psi
Max. Flow GPM
6
Application
Water and Nonflammable Liquids
Flow Range (GPM)
0 to 6.3
Bypass Port (In.)
3/8 F
Type
Regulating
Inlet Port (In.)
3/8 F
For Use With
Plunger Pumps
Factory Set Pressure
4060 psi
Wetted Materials
Brass, 300 Stainless Steel, Buna-N
Outlet Port (In.)
3/8 F
Pressure Range (PSI)
4060
For Media
Water
Operating Pressure - Minimum
1,000 psi
Outlet Connection Gender
Female
Pilot Adjustment - Maximum
3,625 psi
Operating Pressure - Maximum
4,060 psi
Description
Valve, Regulating, Max. Flow GPM 6, Flow Range 0 to 6.3 GPM, Pressure Range 4060 PSI, Max. Fluid Temp. 194 F, Body Material Brass, Wetted Materials Brass, 300 Stainless Steel, Buna-N, Inlet Port (In.) 3/8 F, Outlet Port (In.) 3/8 F, Bypass Port (In.) 3/8 F, Max. Pressure 4060 PSI, Height 4 3/8 In.
